Biscuit sandwich machine, chocolate coating machine

Biscuit sandwich machine is a device for placing cream or jam between two baked biscuits. Golden Bake sandwich machine can be used for rectangle, square and round biscuits. Can be customized double color, monochrome or double layer sandwich biscuits. Our sandwich machine has high production efficiency, health and safety, is the most optimal equipment for all sizes of biscuit food factories......

    oops...!

    no product data.

    Go to homepage

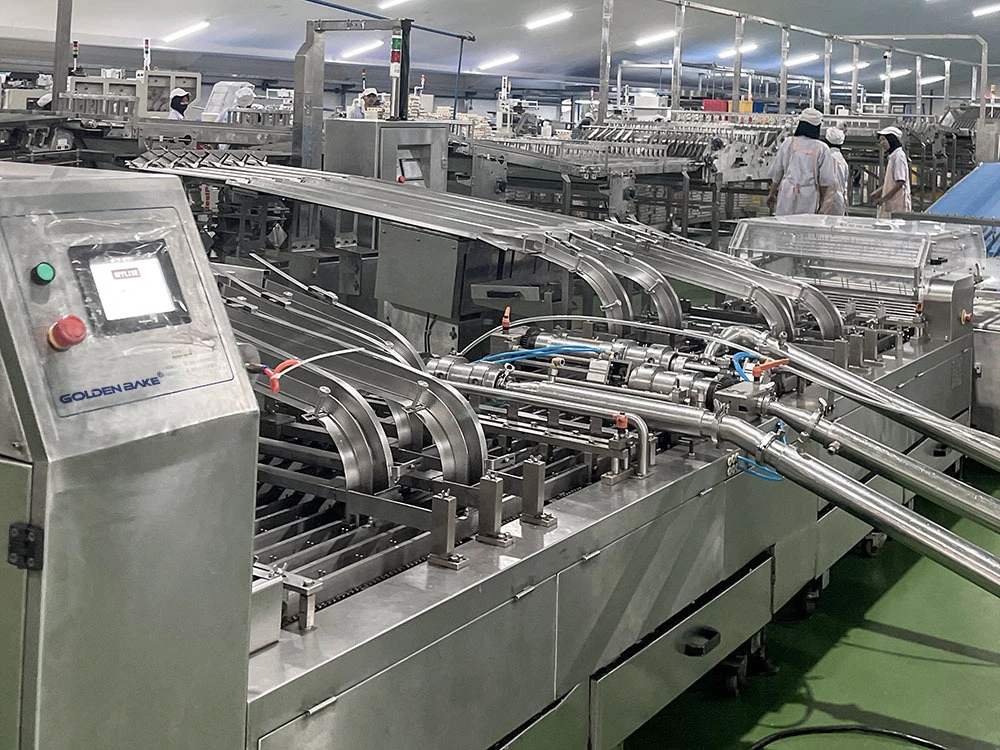

    biscuit sandwich machine

    Product Description

    Biscuit sandwich machine is a device for placing cream or jam between two baked biscuits. Golden Bake sandwich machine can be used for rectangular, square and round biscuits. Can be customized as double color, monochrome or double-layer sandwich biscuits. Our sandwich machine has high production efficiency, health and safety, and is the most optimal equipment for all sizes of biscuit food factories.

    Product Specifications

    Material

    304 Stainless steel

    Producing Speed

    400–2400 Pile sandwich biscuit /Min

    Brand

    GOLDEN BAKE

    Reducer motor for the main machine

    SEND

    Reducer motor (other parts)

    Taiwan brand

    Inverter

    Panasonic

    PLC

    Panasonic

    Touch control screen

    Siemens PLC Touch Screen

    Photo-electricity switch

    Panasonic

    Proximity switch

    Omron

    Transition and emergency stop switch

    Idec

    Circuit breaker, relay

    Schneider

    Pneumatic element

    AirTAC

    PU belt

    RL-China

    Bearing for rotor pump and deposit head

    Import

    Bearing (other part)

    TR – China

    Sandwiching biscuit size

    Round Biscuit:

    Diameter(φ30-φ60 mm)

    Squarer Biscuit:

    Length 30-85



    Width 30-60 mm

    Machine Weight

    900kgs-1600kgs

    Equipment performance

    Main performance: 1. Full set uses SS304. 2. Biscuit Detecting Device and Pneumatic Valve Control Deposit System: Automatically stop cream deposit (Machine still running), and alarm when photo-electricity detects biscuit absent or blocked. Once the biscuit resumes feeding, the pneumatic valve control deposit system will automatically resume cream deposit again. The machine will be kept clean all the time. 3. Clearing Device: biscuit pushing fork cleared by Rotating brushes which are soaked in an alcohol pool, and dried by compressed air. 4. Scrap Recycling: There are drawers on the bottom of the machine for convenient scrap recycling and cleaning. 5. A specially designed stirring paddle and rotor pump ( SUS304) feeding cream to the deposit head independently 6. The cream deposit head (with a constant temperature keeping device ) consists of a stator, rotor and ring mould, made of SUS304 stainless steel; different cream depositing styles only need to change different ring mould. It’s very easy and convenient to install or replace the deposit head or ring mould. 7. Fillings feeding speed synchronizes with fillings deposit speed and both the speeds can be adjusted separately. 8. Two units of vibration biscuit feeding trough feeding the bottom biscuit and top biscuit separately.

    biscuit sandwiching

    Product Characteristics

    The biscuit sandwich machine operates by applying the cream mass to the first product and covering it from the top with another biscuit. In the process of capping biscuits, a pressing module is used, which guarantees that the final products are properly combined and have the same thickness.


    The biscuit cream sandwiching machine - From the first one that is placed in front of the machine’s head, the cookies go to the conveyor, where they are additionally aligned in a uniform row and pass under the head dosing cream, jam or other fillings. From the feeder located behind the head, the second row of cookies (after alignment) is lifted up and placed on the products with filling.

    Biscuit sandwich machine, chocolate coating machine 9

    Product Details

    This biscuit cream sandwiching machine is designed to produce a wide range of biscuit sandwiches in various shapes and sizes. Offered sandwiching machine is tested by our experts in order to assure its flawlessness.

    Biscuit sandwich machine, chocolate coating machine 10

    ① Cream or Jam Feeder

    Biscuit sandwich machine, chocolate coating machine 11

    ③ Touchscreen PLC

    Biscuit sandwich machine, chocolate coating machine 12

    ② Sandwich Cream Extruder

    Biscuit sandwich machine, chocolate coating machine 13

    ④ Sandwich Biscuit Feeder

    Product application

    Suitable for most sandwich biscuit production lines

    cee0102c-d553-4625-a893-3e87883aa285
    Oreo Biscuit
    CRAF2
    Rize Biscuit
    CRAF3 (2)
    Jam Sandwich Biscuit

    Have A Questions?

    If you have any questions about our products or services, feel free to reach out to sales team. We've got preferential price and best-quality products for you.

    CONTACT US

    Frequently Asked Questions

    1
    How many years can your machines be used? What is the lifetime of your machine?
    More than 10 years.(Feedback by our real customer)
    2
    If there are some problems with the machine in the process of operation after we install the equipment, what can you do for us?
    Our engineers will only return to China when they are sure that you can successfully produce the expected products.
    3
    Will you assign engineers to install the biscuit production line in our factory?
    Yes, we will arrange for our engineer and biscuit master to come to your factory until you can successfully produce your own biscuits.
