Golden Bake -Industrial Automatic Biscuit Making Machinery Manufacturer

Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 1
Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 2
Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 3
Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 1
Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 2
Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 3

Mixing System - Feeding, Mixing& Dosing System For Biscuit Line

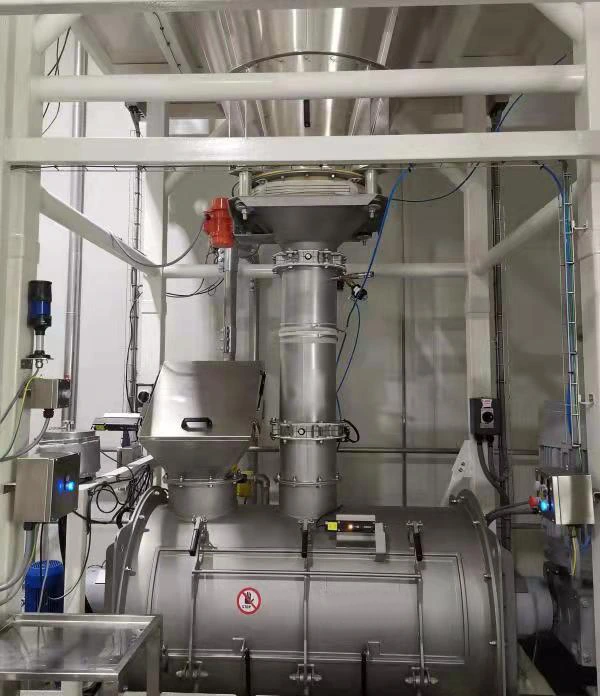

The Mixing System - Stable and reproducible high-quality mixtures, automatic raw material mixture integration

Large opening mixer, CV value ≥ 95% in 120 seconds, less than 0.1% residue after mixing, no damage to the product, maximum 60° closed large opening, mixing and unloading in the shortest time

Good mixing batch repeatability, long stable operation time, overall durability, low maintenance, easy maintenance

    oops...!

    no product data.

    Go to homepage
    Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 4
    混拌-1

    Product Characteristics


    The Mixing System - Stable high-quality repetitive mixtures, automatic raw material mixture integration


    - Modular design

    - Large door design

    - Low discharge residual value

    - Long-term repeatable operation


    Large opening mixer, CV value ≥ 95% in 120 seconds, less than 0.1% residue after mixing, no damage to the product, maximum 60° closed large opening, mixing and unloading in the shortest time

    Good mixing batch repeatability, long stable operation time, overall durability, low maintenance, easy maintenance

    Flour Feeding, Mixing & Dosing System Components

    1

    Dustless feeding station

    Full material:304 stainless steel frame
    Power: 1.1KW
    Method of controlling: PLC control
    Feeding capacity: 50kg/min(30 mesh)

    2

    Airflow sifter

    Full material:304 stainless steel frame
    Power: 0.55KW
    Sieving capacity: 50kg/min(30 mesh)

    3

    Temporary storage tank

    Full material:304 stainless steel frame
    Power of mixing device on the bottom: 4KW
    Power of transportation device on the bottom: 1.1KW
    (Max)Capacity of each tank: 1 ton

    4

    Stainless steel convey pipeline

    Full material:304 stainless steel frame

    5

    Exhauster packages

    Full material: Carbon steel
    Power: 15KW
    Equipped with muffler

    6Material mixer

    Capacity: 165 ~ 10,500 litres per batch

    Mixing ratio: 1/100,000

    Variation coefficient (CV): between 3 and 5

    ATEX compliance

    Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 6

    Product Features - Flour Material Mixing/Feeding/Dosing System

    -Adopt efficient, durable negative pressure conveying and feeding way with dust-free techniques handling.
    -Ensure the workshop is dust-free, clean and hygienic
    -Reduce the labor intensity
    -Improve work efficiency

    -Excellent reproducibility of batches

    -Perfect bomb-bay door sealing(Max:60° angle)

    -Total emptying, minimum residue

    -Optimum mixing homogeneity

    Product Details

    The Flour Mixing System - Feeding, Mixing & Dosing System For Biscuit Line stands as a pinnacle of innovation in the baking industry, expertly designed to enhance efficiency and maintain quality throughout the production process. This system utilizes a state-of-the-art negative pressure conveying mechanism that facilitates seamless and dust-free handling of materials, ensuring a clean working environment while minimizing waste. Its robust structure allows for versatile applications, including sugar crushing, mixing, storage, metering, and discharging

    Mixing System - Feeding, Mixing& Dosing System For Biscuit Line 7

    Application

    Biscuit production line used for automatic making biscuit.
