    Oil sprayer and oil filter for soft and hard biscuit production line 5

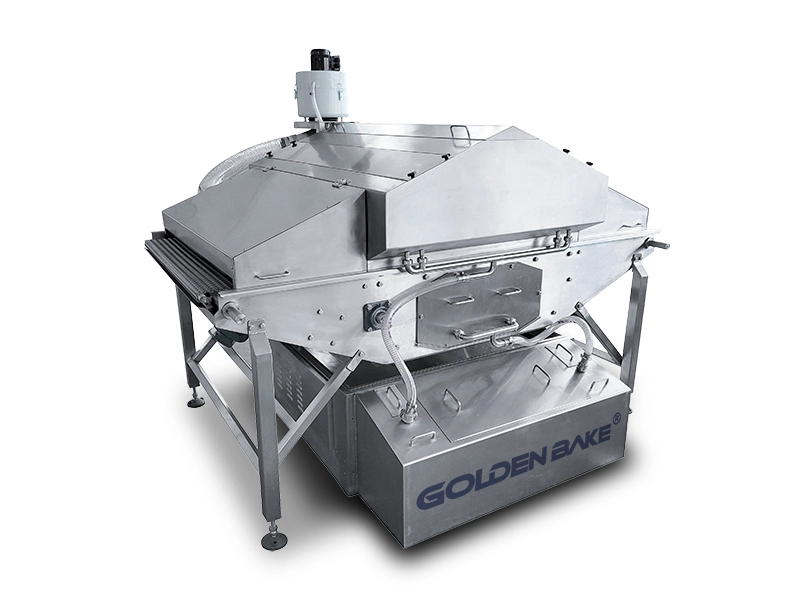

    Product Description
    With the continuous improvement of people’s living standards. There are new requirements on the shape and taste of biscuits. At present, some biscuit manufacturers add an oil spraying machine after the biscuit baking oven, which is used to spray oil on the biscuit, improve the gloss and taste of biscuits, improve product quality, and increase the variety of colors. The raw material can use stable quality and mild-tasting refined oil. After the addition of an oil spraying machine, the oil spraying on the surface of biscuits will not only affect the output and quality of the original biscuit production line, but also improve the gloss of the surface of biscuits and the quality of biscuits. Therefore, the oil spray machine is one of the essential equipment for the production of high-grade biscuits.
    Read More

    Product Specifications

    Model

    GBOS

    Oil mist collector

    FILTERMIST

    Material

    304 Stainless steel

    Width of wire mesh

    900-1300mm

    Brand

    GOLDEN BAKE

    Oil spraying volume

    3-25%

    Power

    11kw

    Size

    2405*2180-2580*2200m

    Oil spray drum

    4 sets total

    2 sets on the upper level, each with 4 spray drums

    2 sets on the lower level, each with 3 spray drums

    Oil tank

    With water tank water bath heating

    Dual oil pump design, controlling the upper and lower spraying volumes separately

    Automatically control the oil level, alarm when it is below the limit, and automatically stop supplying oil when it reaches the high oil level

    Oven belt

    47R flattened square hole mesh belt

    Gas system

    Zero pressure gas supply system

    Oil guide design

    The spray chamber has an inclined groove to guide oil and an oil recovery port at the bottom

    Oil filter

    Multi-layer oil filter

    oil sprayor

    Product Description

    Now biscuit production line manufacturers commonly use two types of oil spraying machines: 1. Nozzle-type oil spraying machine 2. Centrifugal disc-type oil sprayer. Our company produces a centrifugal disc-type oil sprayer. The effect of the centrifugal disk-type oil injector is basically similar to that of the nozzle-type oil injector. But the phenomenon of blockage of the nozzle is greatly improved. Its use of high speed dish turns the oil into a fan oil mist for even spraying on the biscuit. Heat the oil in the interlayer hot water bath and then pour the heated oil onto the high speed dish. When the biscuits enter the oil sprayer with the conveyor belt, the surface of the biscuits is coated with an oil film. And then the conveyor will send the biscuits to the cooling process. After spraying oil on the biscuits, the excess oil that remains on the top and bottom is collected on a separate oil dripping conveyor. Do not let the oil mist leakage occur to ensure the production workshop is clean and safe.

    OIL SPRAYOR DESIGN

    --Drum type spraying oil to ensure spraying evenly without any chance of nozzle blockage.


    --Easy to open for cleaning and maintenance.


    --Equipped with British brand Oil mist collector to ensure the surrounding environment is clean and healthy for operators.


    --3 layers for oil filtering.


    --Oil storage tank adoptsa  heat insulation jacket, water tank

    Oil sprayer and oil filter for soft and hard biscuit production line 7

    PRODUCT DETAILS

    oil spraying chamber
    oil recycle

    Product application

    Suitable most biscuit production lines

    cee0102c-d553-4625-a893-3e87883aa285
    Soft Biscuit
    CRAF3 (2)
    Hard Biscuit
    hard biscuit or cracker
    Cracker

    Have A Question?

    If you have any questions about our products or services, feel free to reach out to sales team. We've got preferential price and best-quality products for you.

    CONTACT US

    Frequently Asked Questions

    1
    How many years can your machines be used? What is the lifetime of your machine?
    More than 10 years.(Feedback by our real customer)
    2
    If there are some problems with the machine in the process of operation after we install the equipment, what can you do for us?
    Our engineers will only return to China when they are sure that you can successfully produce the expected products.
    3
    Will you assign engineers to install the biscuit production line in our factory?
    Yes, we will arrange for our engineer and biscuit master to come to your factory until you can successfully produce your own biscuits.
