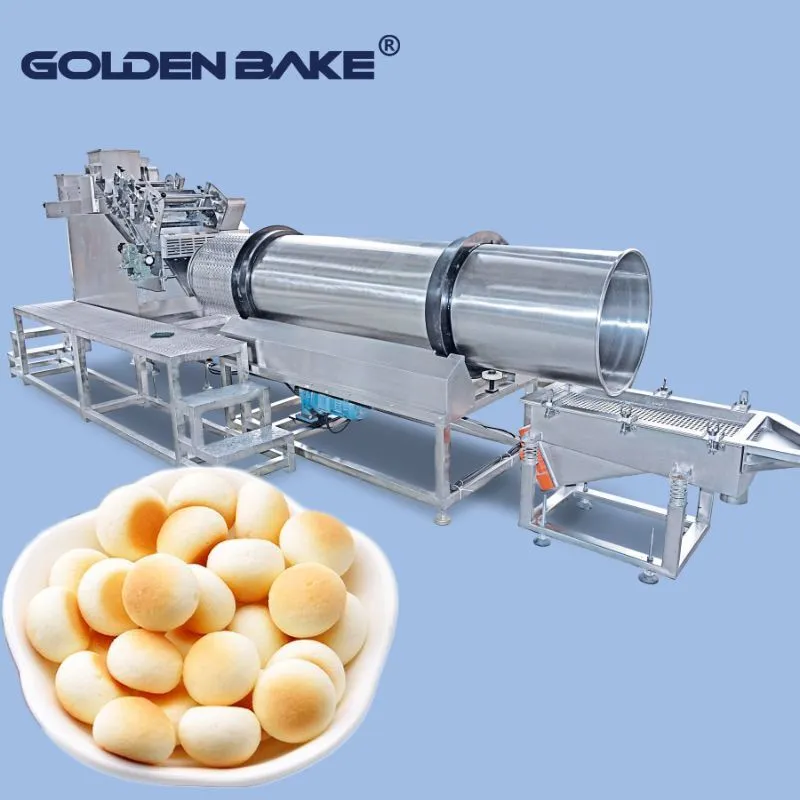

Small steamed bun biscuits production line

Small steamed buns and biscuits are our childhood snacks, and they can be seen in small shops in the streets and alleys. They are small and taste sweet and slightly milky. The entire production line includes horizontal mixers, forming machines, rounding machines, uphill conveyors, alignment machines, electric tunnel ovens and vibrating screen machines.

Place of Origin:

China

Payment:

L/C, T/T

MOQ:

≥1

Brand:

Golden Bake

Inquiry

Write a Review

Small steamed bun biscuits production line 4

Product Characteristics

The small bun biscuit is quite a popular snack among kids. The biscuit is so tiny, crunchy and yummy. Even they don’t have much taste, once you start eating them, you'll fall in love and find it hard to stop. They are small and taste sweet and slightly milky. The entire production line includes horizontal mixers, forming machines, rounding machines, uphill conveyors, alignment machines, electric tunnel ovens and vibrating screen machines.

Product Parameters

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

Item	Name	Specification
1	Horizontal Mixer	High and low speed can be freely converted Parts in contact with food are stainless steel, including screws
2	Forming Machine	Food grade imported PU conveyor belt 3 sets of motors with frequency conversion control; power: 2.25KW The conveyor is equipped with 2 powder hoppers, made of stainless steel. Attached is a vibrating dusting machine. A set of cross-cutting knives, one set consists of 2 cutting knives. This machine comes with 2 stainless steel receiving trays with a thickness of 1.5mm. This machine comes with a stainless steel lower hopper with a thickness of 1.5mm The pressure wheel adopts a precision deceleration adjustment mechanism The frame is made of angle steel as the main body. Outer body and transition piece supports are stainless steel
3	Rounding machine	Power: 0.75KW frequency conversion speed regulation. Rolling barrel: ￠600*3000 stainless steel. The rubber wheels are: 60# rubber on 5 gears, ￠200. The frame is made of stainless steel square steel as the main body. 4 heavy-duty feet.
4	Uphill conveyor	0.75KW frequency conversion speed regulation. The PU tape is 3MM thick. Comes with 50-meter-high circular baffles and 30-meter-high straight baffles. The frame is 100*40 stainless steel square steel There are 5 supporting rollers under the conveyor belt, and the supporting plates are stainless steel plates. Comes with 1 filter.
5	Alignment machine	Power: 0.75KW three-phase motor with frequency conversion control 7 sets of upper and lower templates are made of bakelite boards imported from Japan Stainless steel unloading device. Use organic glass to put the hopper. Imported PVC bristle brush, not easy to shed hair. The shelves are made of 10MM plates. Stainless steel arrangement frame.
6	Tunnel electric oven	Power: 1.5KW three-phase motor with frequency conversion control Bearings: Large wheel bearings are imported The driven wheel is ￠800*700, made of 12MM iron plate. It adopts spring automatic adjustment steel belt method and manual adjustment (manual). Tension spring￠18 wire diameter, 500 long. The furnace head and tail platform is a stainless steel platform. All supporting wheels are made of seamless tubes and hard chrome plated. The supports in the furnace are cast iron bars. There are 6 doors at the top and bottom of each section, with reasonable structural layout and convenient maintenance. The inner frame is made of 3MM iron plate, and the outer cover is made of stainless steel. 100# high density thermal insulation material Stainless steel high temperature electric heating tube heating element Adopting 4 control temperature zones, the temperature can be adjusted in the range of 0~400℃, and the heating time is about 30 minutes. 3 sets of steel belt cooling fans Oven band： SANDVIK
7	Vibrating screening machine	Power: 2 0.45KW vibration motors The whole machine is made of stainless steel. The upper and lower layers of screen mesh can filter large, qualified and small three layers.
