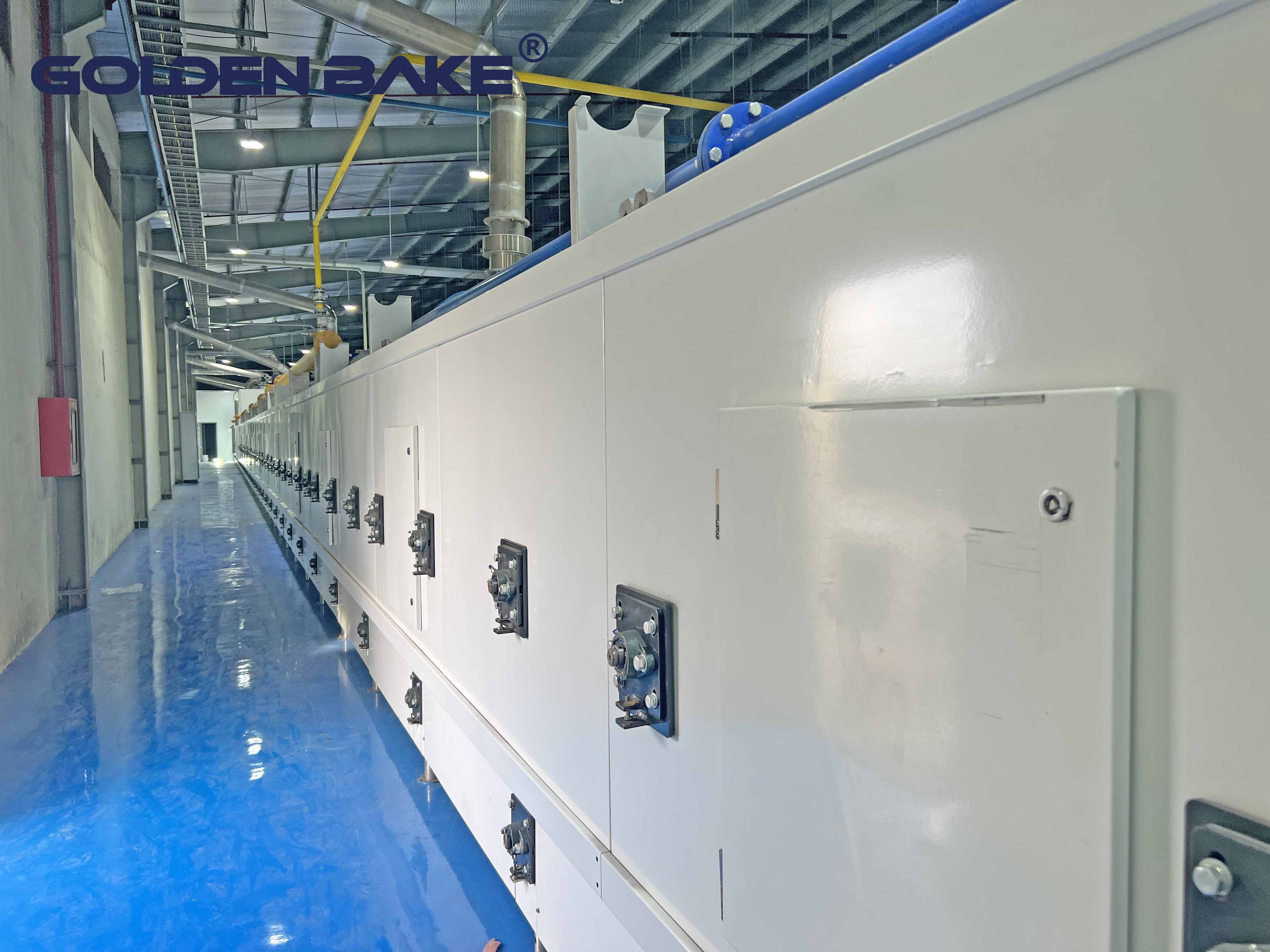

The Electrical baking oven’s automatic temperature control and constant temperature are achieved by alternate work and adjustment of heating elements, which enables the oven to save energy, generate uniform heat and provide accurate temperature. In each temperature zone, two P.I.D are corresponding to the surface temperature and the bottom temperature, respectively to meet the baking temperature of different biscuits. In addition, a self-extracting chimney is added to each temperature zone to meet the steam emission of different processes. The insulation layer around the oven wall uses high-quality rock wool as the insulation material to keep the heat in the furnace from spreading out and save energy. The conveyor of the oven mesh belt is powered by a reducer motor and is controlled by a frequency converter, which brings the advantages of a large speed control range, speed control accuracy, and energy saving.
Product Specifications
Model |
GBHGO800-1200 |
Heating type |
Electric heating |
Material |
304 Stainless steel |
Width of wire mesh |
800-1200mm |
Brand |
GOLDEN BAKE |
Motor |
SEW |
Operation panel |
Siemens PLC Touch Screen |
Length of baking oven |
60-70m |
Bearing |
NSK/ SKF |
Zone of baking oven(1000mm) |
5 temperature zone 1st zone = 12M Indirect heated 2nd zone =12M Indirect heated 3rd zone = 15M Indirect heated 4th zone = 15M Indirect heated 5th zone = 15M Indirect heated |
Electric heating tube |
ZOPPAS, Italy |
Baking time adjustment range |
3-10 mins |
Temp system |
PID control |
Insulation Materials |
Rockwool |
Product Description
The Electrical baking oven is one of the important equipment in the production line; its temperature uniformity is an important index to ensure the quality of biscuits. Our Electrical baking oven has an advanced structure, a practical design, and a tidy appearance. Using the P.I.D+PLC control system, the oven temperature can be chosen freely within the range of 320℃ according to the type of biscuits that need to be baked.
ELECTRICAL OVEN Design
It is divided into five temperature zones, each of which includes the furnace body, exhaust system (one exhaust valve in each section, controlled by valve servo actuator, a total of 22 dampers), electric heating system, furnace temperature control system (touch screen and PLC control), etc. The furnace chamber is covered with aluminum plates imported from South Korea, and the furnace cover is made of stainless steel. Insulation material: ROCKWOLL industrial rock wool. Fully automatic PID temperature control system (part of the electric heating tube is fixedly heated, and the other part is controlled by the power regulator ARP), the temperature control accuracy can reach ±1℃. Imported electric heating tubes, 1.2kw each, a total of 1000 tubes
PRODUCT DETAILS
Product application
Suitable most biscuit production lines
