Product details of the 90 degree turn conveyor

Product Introduction

Skillful manufacture is perfectly demonstrate in production process of 90 degree turn conveyor. Comparing to other products, our 90 degree turn conveyor has more evident advantages in function. Act as a dominant 90 degree turn conveyor supplier, Golden Bake plays an important role in the industry.

90 Degree Turn Conveyor T/T - - Golden Bake 5

Product Characteristics

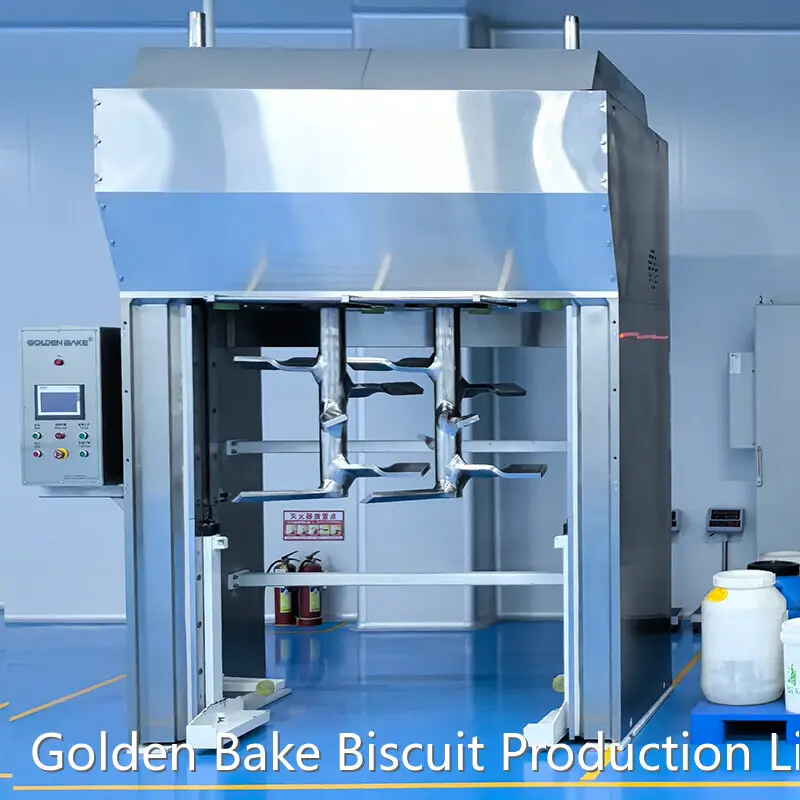

The vertical dough mixer consists of three parts, a control cabinet, a stirring paddle and a dough tub. The control cabinet adopted button touch control, which controls the rise and fall of the dough tub and the speed of the agitator. Two stirring paddles are designed with two optional speeds good for quality dough mixing. High speed for hard biscuit dough is about 25rpm. The low speed for soft biscuit dough is about 16rpm. The dough tub equipped with rollers is more suitable for hard dough which needs to be fermented and easy for workers to push into the fermentation. Slots under the dough tub are designed to automatically pour the dough into the next manufacturing process(hard dough cutting machine).

Product Parameters

Item	Name	Specification
1	Dimension	L1400 mm W2130 mm H2880 mm
2	Weight	5000kg
3	Power	32kW+2.2kW
4	Capacity	300kg flour/time (550kg dough/time )
5	Wallboard thickness	δ40mm
6	Load requirement	1200kg/m2
7	Mixing speed	Double speed 25rpm and 16rpm.
8	Motor brand	Chinese famous brand
9	Lift motor	ABB
10	Reducer brand	Chinese famous brand
11	Electric brand	Schneider
12	Mixing arm material	SS304 Stainless steel
13	Mixing arm type	Double arm, knife type
14	Wallboard treatments	PU lacquer
15	Dough barrel lifting method	Mechanical screw type
16	Inverter	Schneider

90 Degree Turn Conveyor T/T - - Golden Bake 6

Product Advantages

--Button touch control, with double speed to cater for different dough mixing requirement.

--Especially suitable for making fermentation biscuit like soda cracker.

Product Advantages

--Button touch control, with double speed to cater for different dough mixing requirement.

--Especially suitable for making fermentation biscuit like soda cracker.

To get good quality dough the hard dough is usually mixed on a vertical dough mixer. Two or three paddle machines are used with high mixing speed, 25rpm. The high but gentle mixing action incorporates the ingredients well without undue work input at the sponge stage.The yeast should be dispersed in water before feeding to the mixing tub. The dough is mixed to a temperature of 30~35℃, which is the optimum temperature for the action of the yeast. The sponge is fermented for 12 hours at a temperature that depends on the biscuit master. During this time the pH value will change from about 5.5 to 4.0 and the temperature of the dough will increase.After the fermentation of the dough, the dough tub is taken back to the mixing room. The additional ingredients for the dough are added, including the sodium bicarbonate. Gentle, slow-speed mixing is required until homogeneous dough is made. Over-mixing will reduce the spring and give a hard, tough product. After mixing, the dough is returned to the fermentation room for up to 4 hours. With the addition of soda, a large change in the pH occurs and the dough will reach a pH of over 7.0.

Product Details

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

90 Degree Turn Conveyor T/T - - Golden Bake 8

① Rising the dough tub to mix the dough.

90 Degree Turn Conveyor T/T - - Golden Bake 9

② Stainless steel dough tub

90 Degree Turn Conveyor T/T - - Golden Bake 10

③ Automatic pour the dough to next process.

Application

90 Degree Turn Conveyor T/T - - Golden Bake 11

Hollow panda biscuit production line

90 Degree Turn Conveyor T/T - - Golden Bake 12

Potato crisp cracker production line

90 Degree Turn Conveyor T/T - - Golden Bake 13

Marie biscuit production line

90 Degree Turn Conveyor T/T - - Golden Bake 14

Ritz biscuit production line

90 Degree Turn Conveyor T/T - - Golden Bake 15

Soda cracker production line

90 Degree Turn Conveyor T/T - - Golden Bake 16

Finger biscuit production line

90 Degree Turn Conveyor T/T - - Golden Bake 17

Letter biscuit making machine

90 Degree Turn Conveyor T/T - - Golden Bake 18

Sandwich biscuit equipment

Biscuit production line used for automatic making biscuit.
