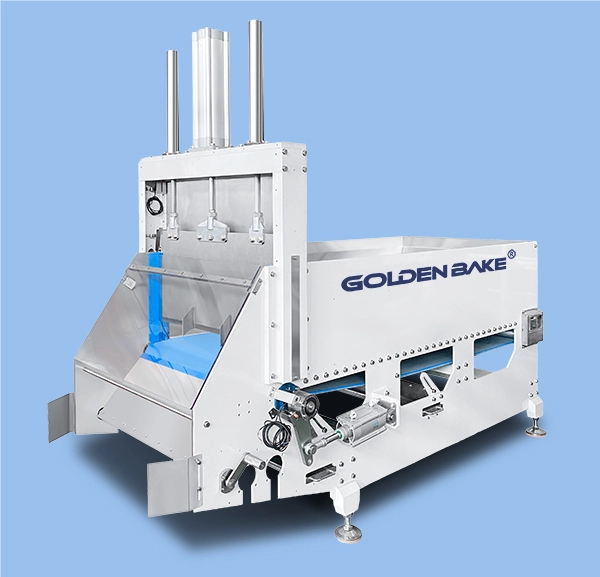

Hard dough cutting machine and Dough climbing conveyor
The hard dough cutting machine is placed in front of the forming machine and behind the dough mixer. It is used to cut the block of dough into dough bricks and send them to the laminator or three rollers sheeter. Our mixer can mix up 550kgs dough of dough at one time. Suppose all of the dough is poured into the laminator or three rollers sheeter simultaneously. In that case, the heavy pressure will easily deform the hopper of the laminator or three rollers sheeter and bend the laminator or three rollers sheeter roller. As a result, the service life of the machine is reduced.
B站不支持收货地址
B站不支持库存规格
MOQ
≥ 1 set
Payment
L/C, T/T
Place of Origin
China
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Quantity:≥1

Payment method:TT/LC

Delivery time:30 days

Port of departure:Any port of china

Certificate:CE


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容
Dough cutting machine

Product Characteristics

The hard dough cutting machine is placed in front of the forming machine and behind the dough mixer. It is used to cut the block of dough into dough brick and send them to the laminator or three rollers sheeter. Our mixer can mix up 550kgs dough of dough at one time. If all of the dough is poured into the laminator or three rollers sheeter at one time, the heavy pressure will easily deformed the hopper of the laminator or three rollers sheeter and bent the roller of the laminator or three rollers sheeter. As a result, the service life of the dough cutting machine is reduced.
Metal detection instruments can be installed on both sides of the conveying slope, which can effectively detect whether the dough brick contains metal impurities in the conveying process. Automatic remove the dough brick which contain the impurities , then continue to work. Ensure the hygiene of biscuits and the proper operation of the machines behind.


The method of application:

First use the dough feeding system. It feed the mixed dough into dough cutter hopper, or into dough hopper on second floor, by lifting and tilting either dough barrel for vertical mixer or dough trolley for horizontal mixer;



Second use the dough feeding system. Pneumatic cutting. To cut the dough into pieces in certain thickness before transfer to forming machines like sheeters and laminator;



Final use the dough conveyor - To convey the cut dough pieces to the laminator or the sheeters. Professional dough slicer machine for sale, contact to get a quote!

Hard dough cutting machine

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

Item

Name

Specification

1.

Dimension

L2600mm*W1600mm*H1260mm

2.

Weight

1115kg

3.

Hopper volume

1000kg

4.

Slicer material

304 stainless steel

5.

Outer cover treatments

304 stainless steel

6.

Wallboard treatments

PU lacquer

7.

 Operating electric

Schneider

8.

Pneumatic component brand

SMC

Dough climbing conveyor

       Item

Name

Specification

1.

Dimension

L7000mm*W1350mm

2.

Weight

580kg

3.

Power

0.55kW+0.55kW

4.

Speed control method

By inverter

5.

Conveyor material

PU

6.

Side board material

304 Stainless steel

7.

Operating electric

Schneider

8.

Inverter brand

Schneider

9.

Linear speed of PU belt

6~12m/min  adjustable

Product Characteristics

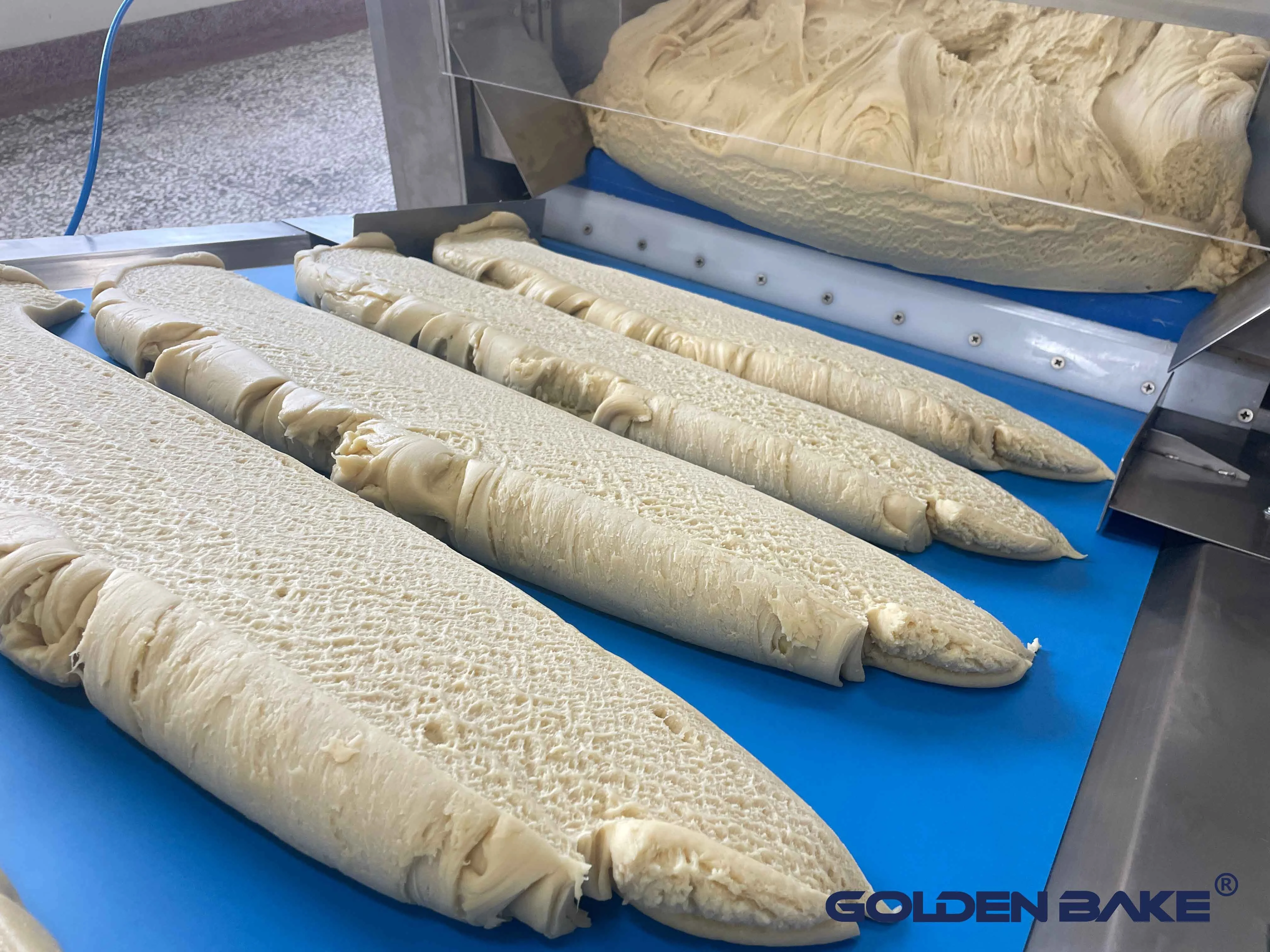

-Uniform cutting the dough to dough brick.
-Metal detection instruments to control the hygiene of biscuit.

Product Details

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

这里可以自定义设置

① Feeding the mixed dough into dough cutter hopper by lifting and tilting either dough barrel for vertical mixer or dough trolley for horizontal mixer

② Using the dough feeding system. Pneumatic cutting. To cut the dough into pieces in certain thickness before transfer to forming machines like sheeters and laminator.
