Penny stacker & Rotary stacker
Different speed Stacking Machine & Star-wheel Stacking Machine for biscuit production line
B站不支持收货地址
B站不支持库存规格
Model
No
MOQ
≥1
Payment
L/C, T/T
Place of Origin
China
Brand
Golden Bake
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
Biscuit penny stacker and rotary stacker

Product Characteristics

Products function

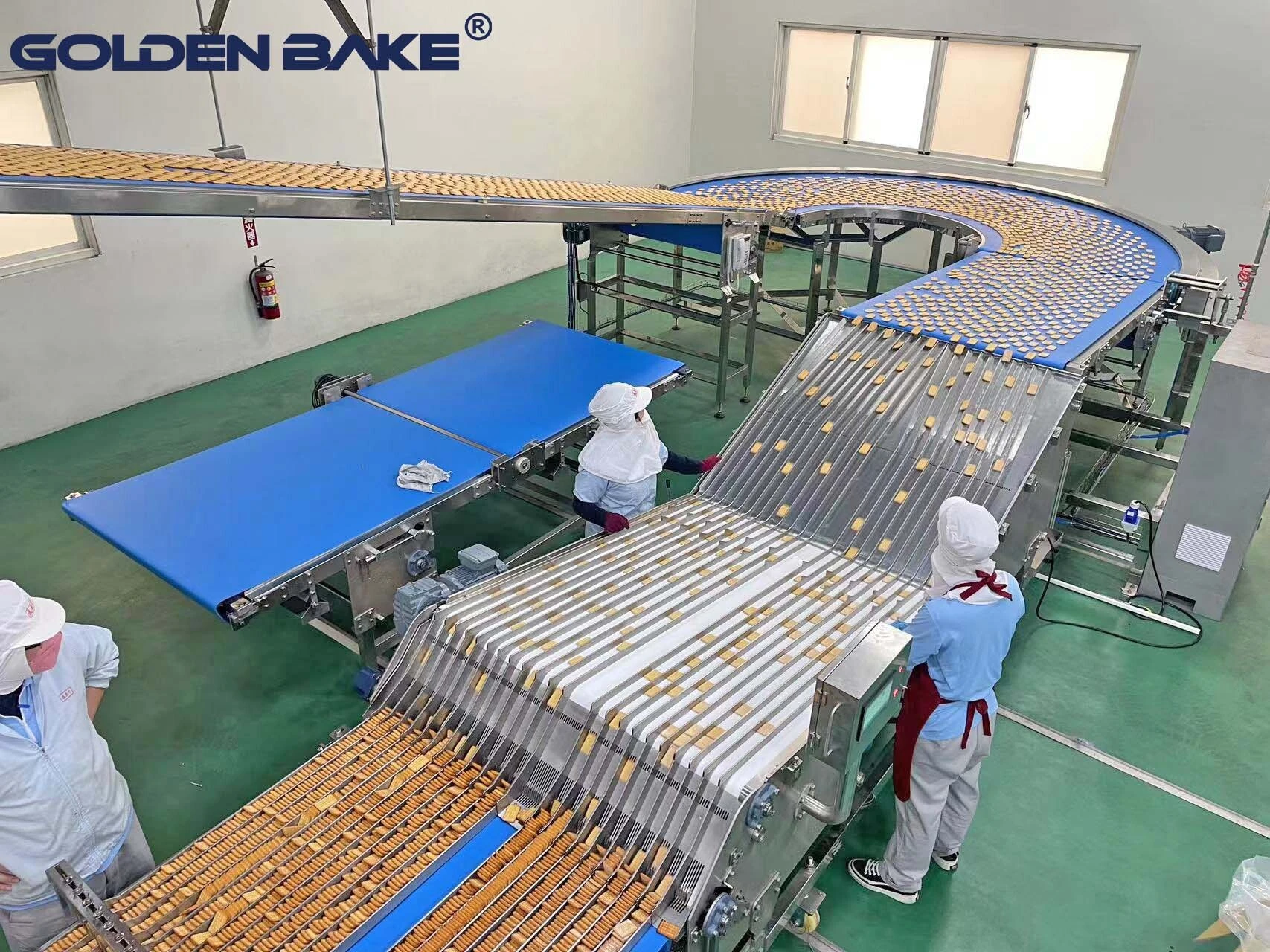

The biscuit stacking machine, as auxiliary equipment in biscuit production line, accepts the biscuits from the cooling conveyor, forms them into lanes, stacks them on edge , and transfers them to the forwarding cooling or packing conveyor.



Products advantage

1, USES the PUC ring with stainless steel mesh belt conveyor,  arrives automatically in orderly ranks, improves packaging efficiency , saves labor

2, configuration, magnetic suction limit, width and speed can be adjusted flexibly, and is suitable for various specifications of biscuits.

3:The arc design at the end of the slide plate can prevent rolling when the biscuits slide down from the conveyor



Application

There are two systems for placing biscuits:The penny stacker and The rotary stacker .They apply to a variety of biscuit production lines, such as Wave shape potato biscuit,Potato crisp cracker,Oreo biscuit, Marie biscuit, Ritz biscuit, Soda biscuit, Cookies, Egg tart biscuit, Sandwich biscuit and so on. The difference of them is:The rotary stacker can turn over the biscuit to another side when the biscuits slide down from the conveyor,but the penny stacker can not,so you may choose the rotary stacker if the biscuit need to be sandwiched, such as Oreo biscuit,Sandwich biscuit and so on.

Penny stacker & Rotary stacker for biscuit production line

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.



                                                                                                                     Penny stacker

Item

Name

Specification

1

Size

3000mm*1346mm*850mm

2

Weight

855kg

3

Power

0.75kW+0.75kW

4

Material of conveyor

Pu belt

5

Support roller treatments

Plate environmental hard chromium

6

Stacking style

Different speed

7

Star wheel material

304 Stainless steel

8

Method of offsetting

Pneumatic automatic correction system

9

Pneumatic brand

SMC

10

Out cover

304 Stainless steel

11

Machine frame

304 Stainless steel

12

Reducer brand

SEW

13

Inverter brand

Japan Panasonic

14

Electric control brand

Schneider



                                                                                                                   Rotary stacker

1

Size

2310mm*1900mm*1320mm

2

Weight

855kg

3

Power

1.5kW+0.25kW

4

Material of conveyor

Pu belt

5

Support roller treatments

Plate environmental hard chromium

6

Stacking style

By star wheel

7

Star wheel material

304 Stainless steel

8

Method of offsetting

Pneumatic automatic correction system

9

Pneumatic brand

SMC

10

Out cover

304 Stainless steel

11

Machine frame

Spraying paint

12

Reducer brand

SEW

13

Inverter brand

Japan Panasonic

14

Electric control brand

Schneider

Product Characteristics



--Improving the biscuit packaging efficiency



--Improving biscuits pick-up speed



--Receiving the biscuits from the cooling conveyor and stack them into upright position



--Full automatic
