Biscuit Rotary Moulder Industrial Biscuit Rotary Moulding Machine For Sale

这里可以自定义设置
Biscuit Rotary Moulder Industrial Biscuit Rotary Moulding Machine For Sale
Rotary Moulder Cookie Machine For Sale

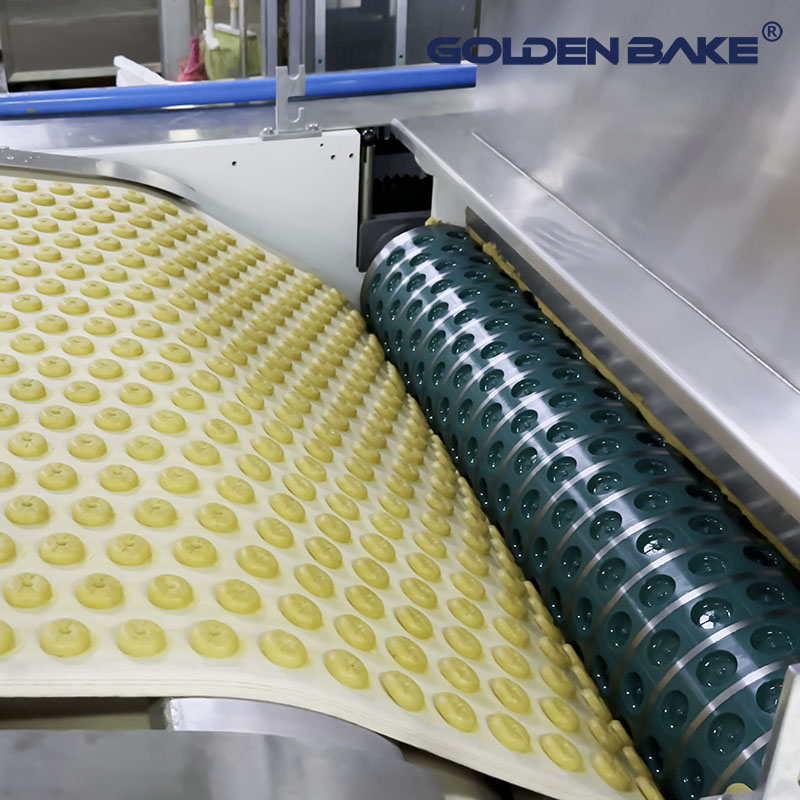

Industrial biscuit rotary moulder is designed to shape and mold dough into various forms and sizes before baking. The biscuit rotary moulding machine consists of a rotating drum or cylinder with cavities or molds that are shaped according to the desired biscuit design. The dough is fed into the machine, and as the drum rotates, the dough is pressed into the molds, taking on their shape. The excess dough trimmed off, and the molded biscuits are then transferred to a baking tray or conveyor belt for further processing.
B站不支持收货地址
B站不支持库存规格
MOQ
≥ 1 set
Payment
L/C, T/T
Place of Origin
China
Brand
Golden Bake
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Quantity:≥1

Payment method:TT/LC

Delivery time:30 days

Port of departure:Any port of china

Certificate:CE


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容
GB rotary moulder

Product Characteristics

The biscuit rotary moulder is placed in front of the baking and behind the Soft Dough Crumbler. It is especially important for making soft biscuit. After being pre-rolled and crashed by the soft dough crumbler, the dough is sent to the rotary moulder for performing its rolling and forming. Our biscuit rotary moulding machine is mainly used for the continuous production of soft dough, shortbread, and low fat cookies.



Our rotary moulder cookie machine is of great adaptation for wide range of dough, like making large biscuit, very hard dough and very soft sticky dough. It is consist of 3 driving force which including feeding roller, mould and canvas belt which is all adjustable. The dough feeding roller material is Seamless steel tube. Feeding roller edger material is PP. As for the Scraper material, it is 304 stainless steel.



Our rotary biscuit moulder is various with different shapes for diverse biscuit. For letter biscuit moulder, finger biscuit moulder, hollow panda biscuit moulder. Anyway, our moulder can be customized according to the specific requirements of our customer.

As for belt,we use the canvas belt not PU belt, because the canvas belt is beneficial for us to remove the biscuit embryo from the moulder. Its Scraper can be adjusted up and down with different angle;

As for the system, we adopt central control system, LCD touch screen operation and human machine Interface, it can be operated separately or together;

For its Conveyor belt,we use Round canvas belt for cutter, pneumatic correction system.



Last but not least,with our biscuit rotary moulding machine, you can achieve more accurate and effective weight of dough pieces and high production as well as nice outer appearance and evenness in the thickness of the moulded products.

Biscuit rotary moulding machine Parameters

Golden Baken rotary biscuit moulder supplier providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

Item

Name

Specification

1

Dimension

L1200mm*W2150mm*H1300mm

2

Weight

1540kg

3

Power

3kW+2.2kW+1.5kW

4

load request

800kg/㎡

5

Motor driven amount

3 driving force (including feeding roller, mould, canvas belt)

6

Mould material

PTFE (polytetrafluoroethylene)

7

Conveyor belt

Round canvas belt for cutter, pneumatic correction system.

8

Pneumatic component brand

Japan SMC

9

Wallboard thickness

δ30mm

10

Dough feeding roller' s type

Nubby type

11

Dough feeding roller material

Seamless steel tube

12

Surface treatment of feeding roller

plate environmental hard chromium

13

Feeding roller edger material

PP

14

Method of feeding roller' s distance adjustment

Fine-tune by hand-wheel

15

Scraper material

304 Stainless steel

16

Scraper' s adjust method

Upward or downward, angle all can adjust

17

Scraper' s adjust method

By graduated hand wheel

18

Roller angle adjustment

Adjustable

19

Hopper material

304 Stainless steel

20

Hopper capacity

80L

21

Motor brand

SEW

22

Reducer brand

SEW

23

Operation method

Touch screen

24

Inverter brand

Japan Panasonic

25

PLC Brand

Japan Panasonic

26

Touch screen brand

Wennview

27

Electric control brand

Schneider

28

Out cover material

304Stainless steel

29

Transition support board material

304 Stainless steel

30

Support roller treatments

Plate environmental hard chromium

31

Wall board treatment

PU lacquer

Product Characteristics

Rotary biscuit moulder for sale

 -3 driving force (feeding roller, mould, canvas belt).
 -Adjustabl angle between canvas belt and mould.
 -Scraper can be adjusted up and down with different angle.
 -Great adaptation for wide range of dough, like making large biscuit, very hard dough and very soft sticky dough.

Product Details

Industrial biscuit rotary moulding machines are typically made of stainless steel for hygiene and durability. They can be automated and integrated into large-scale biscuit production lines, allowing for high-speed and consistent production of biscuits in large quantities.

Our rotary biscuit moulders offer several advantages, including precise shaping and sizing of biscuits, uniformity in product quality, increased production efficiency, and reduced labor requirements.

They are widely used in baking & food manufacturing facilities to streamline the biscuit production process.

① Moulding the dough into special shape.

Application

Biscuit production line used for automatic making biscuit.
