Potato chips W-shape forming machine wavy gauge rolls

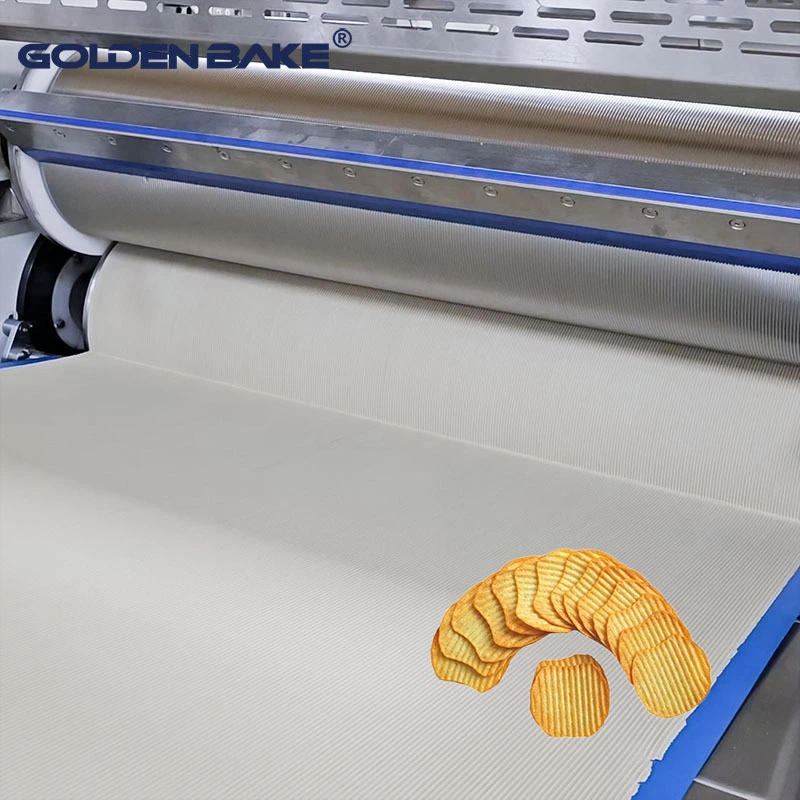

The W-shape forming machine is one kind of gauge roll with a specially shaped roll. The roll of normal gauge rolls are smooth and only used to thin the dough. The W-shape forming machine is responsible for shaping the wavy shape on the dough sheet. Then go through the rotary cutter to cut the dough sheet......
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Quantity:≥1

Payment method:TT/LC

Delivery time:30 days

Port of departure:Any port of china

Certificate:CE


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容

Product Characteristics

The W-shape forming machine is one kind of gauge roll with a specially shaped roll. The roll of normal gauge rolls are smooth and only used to thin the dough. The W-shape forming machine is responsible for shaping the wavy shape on the dough sheet. Then go through the rotary cutter to cut the dough sheet.
Wavy potato crisps chips also called w-shape potato biscuits a special shaped potato chips. Wavy potato crisp chips are made from whole starch, water, sugar, and other small ingredients. Instead of the flat design of traditional potato chips, the new wavy shape potato chips are more popular with young consumers. It's a bit more crunchy and chewy than common chips. Wavy potato crisp chips using non-fried production process can maximum guarantee potato chips original flavor and reduce the production of harmful substances. And people can eat a lot without getting fat. In terms of texture, our Wavy shape potato biscuit production line is different from the normal hard dough biscuit production line. We don’t use the laminator and shortening powder duster in our Wavy shape potato biscuit production line. Laminator may cause the wavy shape potato biscuit to bubble during baking. It will seriously affect the forming effect of the biscuit. In Wavy shape potato biscuit production line, we equipped the three rolls sheeter(combination sheeter) as the first rolling process after finishing the mixing process. Then connect the gauge roller, after the left and finally connect with a wavy shape forming machine. Our multiple gauge rolls technology can ensure that potato chips will not cause bubbles during the baking due to insufficient rolling.

Product Parameters

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

Item

Name

Specification

1

Load request

800kg/㎡

2

Wallboard thickness

δ30

3

Roller’s size

320×2

4

Roller quantity

2

5

Forming shape

W shape

6

Center of roller' s distance adjust

Mechanical limit

7

Calendaring thickness' s rang

1~10 mm

8

Method of roller’s distance adjust

Motor-driven adjustment

9

Control method

Frequency control of motor speed

10

Belt

Pneumatic deviation control

11

Roller material

Alloy chilled roller

12

Material of roller edger

Nylon

13

Material of scraper used for scraping roller

304 Stainless steel

14

Material of scraper used for belt

Nylon

15

Motor brand

SEW

16

Reducer brand

SEW

17

Method of operation

Electric

18

Converter brand

Japan Panasonic

19

PLC brand

Japan Panasonic

20

Electric control brand

French Schneider

21

Out cover material

Stainless steel

22

Transition support board material

Stainless steel

23

Support roller treatments

Plate environmental hard chromium

24

Wall board treatment

PU lacquer

Product Characteristics

--Adopt customized chilled alloy roll of exclusively formula to make rollers of high hardness, making it longer working life.
--Roller are designed to be able to make wavy shape onto the dough sheet
--Central Control System provides practical and user-friendly operation function, including upstream follow-up joint- control function which make machine trial running and daily operation easier for operators and as well as saving operators.
--Machines can be either control flexibly via touch screen or by buttons.
--Roller’s gap distance adjustment adopt electricity motor-driven screw lifting, making it longer working life rather than eccentric wheel and easier operation for workers.
--Adjustment accuracy:0.01mm.
--Gauge roll machine’s drive motor is installed vertically suspended which provide most effective power output  to save energy and easy for cleaning an maintenance.
