Cut sheet laminator---pre-made dough sheet

这里可以自定义设置
Cut sheet laminator---pre-made dough sheet
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Quantity:≥1

Payment method:TT/LC

Delivery time:30 days

Port of departure:Any port of china

Certificate:CE


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容

Product Characteristics

The cut sheet laminator is placed in the front of the forming machine and behind the dough cutter conveyor. It is used to laminating dough sheet with cutting the dough sheet into slices and send them to three gauge rollers. Cut sheet laminator is mainly used for pre-made dough sheet,laminating, sprinkle powder in the preparation of hard biscuits especially crackers, (soda or cream) as it overlaps layers of dough sheets which as a consequence give the flaky appearance and texture to the final products.What’s more, it can also balance the gluten inside the dough sheet. It is especially necessary for producing most of the hard biscuit like soda biscuit, crackers and so on.Cut sheet laminator lays each dough sheet onto the previous one. Thus overlapped, the dough is received by a lower discharge conveyor and then transferred to the next set of gauge rollers in order to be gauged to the final thickness before entering the rolling cutter.
Our cut sheet laminator is equipped with Touch screen control, PLC control system, and variable frequency speed regulating motor, it can be operated separately or together, the automation is fine. As a result, it is easy and convenient to operate. Besides it’s designed with 15 motors, 8 inverters and 4 servo motors to get accurate size and even thickness dough sheet. The number of layers of cut sheets,width of dough sheets,the thickness of the dough sheet and continuous laminating are adjustable. The dough sheet thickness varies from 3 to 15mm and the width is is about 550mm/810mm. The layers of laminated dough sheet is 4—12 . All technology and advanced parts applied in our lamiator have contributed to better muti-layered texture of biscuits and improving the quality and grade, especially for soda cracker and cream cracker.

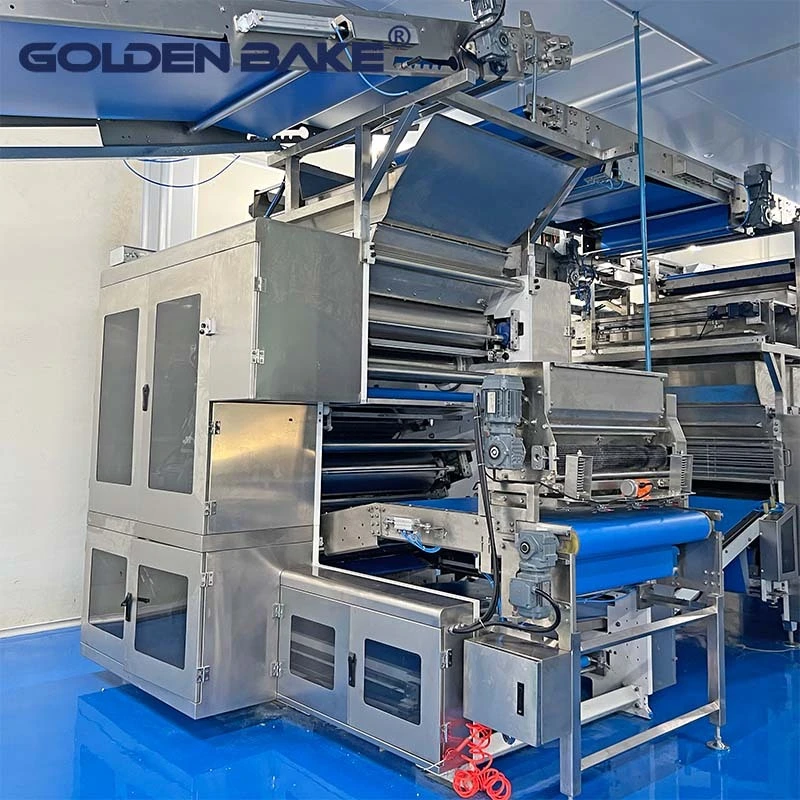

Cut sheet laminator

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

Item

Name

Specification

1.

Dimension

L2700mm*W2400mm*H2780mm

2.

Weight

8500kg

3.

Power

16kW

4.

rooved rolls

φ400mm×2 pieces and φ230mm×1 piece

5.

Gauge rolls

φ230mm×4 pieces

6.

Material of gauge rolls

Chilled alloy

7.

Material of roller edger

PP

8.

Material of conveyor

PU belt with conducting bar

9.

PU belt scraper

PP

10.

Laminating layers

From 4 to 12 layers (adjustable)

11.

Width of cut layer

1450mm~1550mm(adjustable)

12.

Thickness of dough sheet

2~15mm (adjustable)

13.

Control style

Human-computer interface, motor speed control by inverter, single machine control, upstream follow-up control.

14.

Control style of sheet cutting

Sanyo servo motor.

15.

Motor brand

SEW

16.

Reducer motor brand

SEW

17.

Gauge roll bearing

NSK

18.

Operation method

Touch screen

19.

Inverter brand

Japan Panasonic

20.

PLC brand

Japan Panasonic

21.

Touch screen brand

wennview

22.

Control electric brand

Schneider

23.

Material of outer cover

304 Stainless steel

24.

Transition support board material

304 Stainless steel

25.

Hopper material

304 Stainless steel

26.

Support roller treatments

Plated environmental hard chromium

27.

Wall board treatment

PU lacquer

Shortening powder duster machine (inside laminator)

Item

Name

Specification

1.

Dimension

L930mm*W1320mm*H470mm

2.

Weight

125kg

3.

Total power

0.37kW+0.37kW

4.

Speed control method

Motor speed controlled by inverter

5.

Inverter brand

Japan Panasonic

6.

Conveyor material

304 Stainless steel mesh belt

7.

Cover,hopper and wall board

304stainless steel

8.

Sprinkling method

Vibrator roller

9.

Motor brand

Taiwan Yuxin (GH)

Product Characteristics

-Design with 15 motors, 8 inverters and 4 servo motors to get accurate size and even thickness dough sheet
-Can make 4-12 layer
-Mesh belt vibration dusting evenly
-Independent design, easy to move, clean and maintai

Product Details

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

这里可以自定义设置

① Conveying the hard dough to the cut sheet laminator from the hard dough cutting machine.

② Equipped with the shortening powder duster machine to make more layer texture.

Application

Biscuit production line used for automatic making biscuit.
