Company Advantages
· With advanced and sophisticated production technique, Golden Bake biscuit machine suppliers is perfect in every detail.
· Our experienced quality inspectors have carefully tested the product in all respects, such as its performance, durability, and so on, in accordance with the international standards.
· The product will have a larger market share with the development of the market.
Product Characteristics

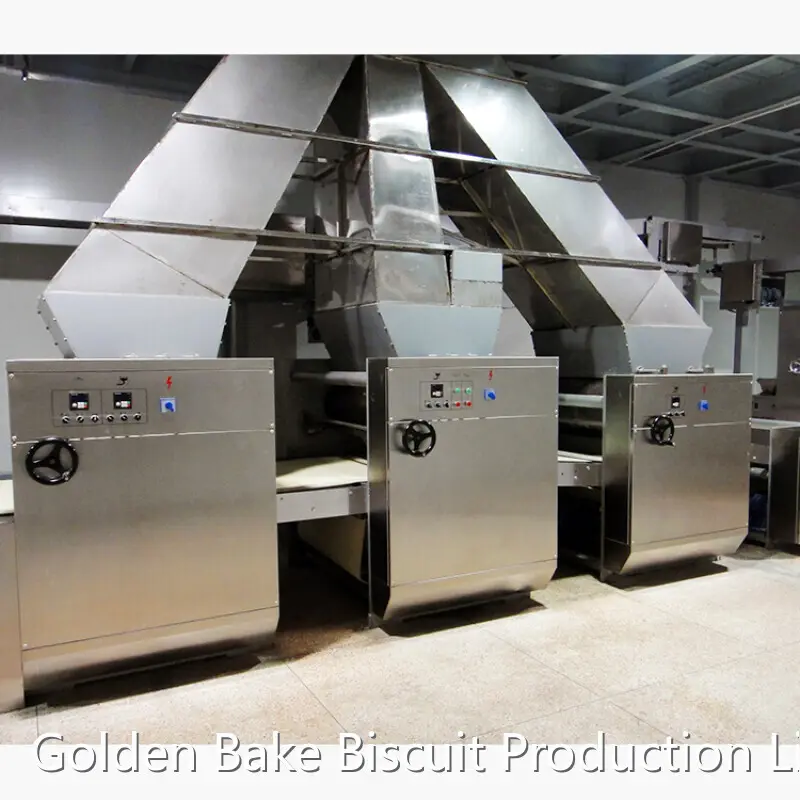

The three color biscuits is made of three colors of dough.Unlike sandwich biscuits, the different colors in the center are made from dough, not jam or cream. The three color is placed in front of the gauge roller and behind the dough mixer. It is consist of three set biscuit dough forming machines. In the same way as the gauge rolls, it is responsible for pressing the dough into a specified thickness. But different from the gauge rolls, each machine in the automatic cookie dough roller has a separate feeding hopper. Each hopper can be fed with different colors dough according to the customer's requirements.Then go through the 3 colors cookie dough sheeter to make the three color biscuit embryo.When we don not make the three-color biscuit, the first machine is responsible for feeding material, which is directly delivered to the gauge rolls from the middle one.The three color sheeter can be used as gauge rolls.Our three-color can run separately or synchronously.It is made of 304 stainless steel.
Product Characteristics
--Adopt customized chilled alloy roll of exclusively formula to make rollers of high hardness, making it longer working life. --Roller are designed to be able to make super thin biscuit, by getting dough sheet thickness 0.7mm to 0.8mm evenly. --Central Control System provides practical and user-friendly operation function, including upstream follow-up joint- control function which make machine trial running and daily operation easier for operators and as well as saving operators. --Menu memory and call out function, easy for next time making same product. --Biscuit dough forming machines can be either control flexibly via touch screen or by buttons. --Roller’s gap distance adjustment adopt electricity motor-driven screw lifting, making it longer working life rather than eccentric wheel and easier operation for workers. --Adjustment accuracy:0.01mm. --Gauge roll machine’s drive motor is installed vertically suspended which provide most effective power output to save energy and easy for cleaning an maintenance. --Each machine in the three color sheeter has a separate feeding hopper to feed different color dough brick.
Product Parameters
Cookie dough sheeter typically consists of a conveyor belt or rollers that feed the dough through adjustable cylinders. the dough passes through the cylinders, it is compressed and flattened to the desired thickness.
The dough sheeter for cookie dough may have multiple sets of cylinders to achieve different thicknesses or to perform additional tasks such as cutting or shaping the dough.
Item | Name | Specification |
1. | Dimension | L1100mm*W2100mm*H1450mm |
2. | Weight | 3000kg per set |
3. | load request | 800kg/㎡ |
4. | Power | 1.1kW+0.75kW+0.37 kW |
5. | Wallboard thickness | δ25 |
6. | Gauge roll dimension | 350mm×2+200mm×1 |
7. | Guage roll quantity | 3 pcs |
8. | Calendaring thickness' s rang | 3～30 mm |
9. | Method of rolle' s distance adjust | Electricial Adjustment |
10. | Method of controlling | Frequency speed control |
11. | Belt | PU belt （China famous brand） |
12. | Roller material | Chilled alloy |
13. | Material of roller edger | PP |
14. | Material of scraper used for scraping roller | Stainless steel (304) |
15. | Material of scraper used for belt | PP |
16. | Motor brand | SEW |
17. | Roller used for Calendaring and reducer used for belt | SEW |
18. | Method of operation | Converter (with main machine’s system) |
19. | Converter brand | Japan Panasonic |
20. | PLC Brand | Japan Panasonic |
21. | Electric control brand | Schneider |
22. | Out cover material | 304Stainless steel |
23. | Transition support board material | 304Stainless steel |
24. | Support rolls treatment | Plate environmental hard chromium |
Product Details
Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.
① Each machine in the three color sheeter has a separate feeding hopper to feed different color dough brick.
Application
It's worth noting that while cookie dough sheeters are primarily used for cookies, they can also be used for other types of dough, such pastry dough or pizza dough, depending on the specific design and capabilities of the machine.
Company Features
· Being engaged in manufacturing biscuit machine suppliers, Golden Bake has taken its dominant position in the market.
· The cutting edged technology of Golden Bake Group is internationally recognized.
· We are committed to extending our responsible and sustainable practices to every aspect of our business, from our own quality control to the relationships we have with our suppliers.
Product Details
Compared with ordinary products, Golden Bake Biscuit Production Line's biscuit machine suppliers has the following advantages in details
Application of the Product
Our biscuit machine suppliers meets the needs of multiple industries and fields.
Golden Bake Biscuit Production Line is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
Product Comparison
Compared with other products in the same category, Golden Bake Biscuit Production Line's biscuit machine suppliers has the following advantages.
