300kg/550kg two speed two paddle biscuit vertical dough mixer dough mixer

The vertical dough mixer consists of three parts, a control cabinet, a stirring paddle and a dough tub. The control cabinet adopted button touch control, which controls the rise and fall of the dough tub and the speed of the agitator. Two stirring paddles are designed with two optional speeds good for quality dough mixing. High speed for hard biscuit dough is about 25rpm......

    oops...!

    no product data.

    Go to homepage
    300kg/550kg two speed two paddle biscuit vertical dough mixer dough mixer 5
    Product Description

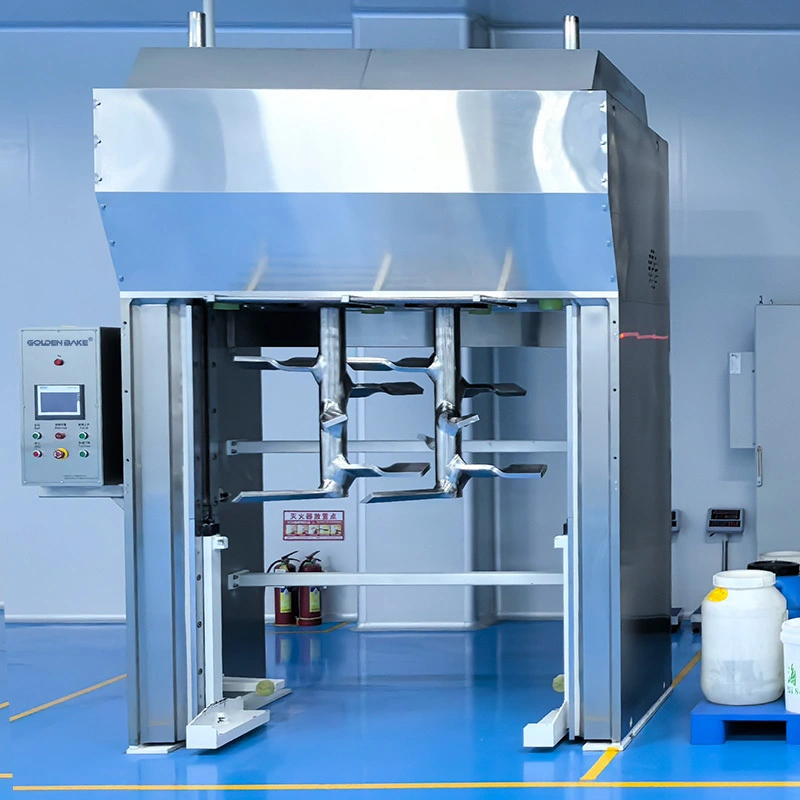

    The vertical dough mixer consists of three parts, a control cabinet, a stirring paddle and a dough tub. The control cabinet adopted button touch control, which controls the rise and fall of the dough tub and the speed of the agitator. Two stirring paddles are designed with two optional speeds good for quality dough mixing. High speed for hard biscuit dough is about 25rpm. The low speed for soft biscuit dough is about 16rpm. The dough tub equipped with rollers is more suitable for hard dough which needs to be fermented and easy for workers to push into the fermentation. Slots under the dough tub are designed to automatically pour the dough into the next manufacturing process(hard dough cutting machine).
    Read More

    Product Specifications

    Model

    GBVM300/550

    Mixing Capascity

    300/550 KG

    Material

    304 Stainless steel

    Size

    3492mm*1632mm*2900mm

    Brand

    GOLDEN BAKE

    Motor

    SEW/China top brand

    Inverter

    Danfoss

    Mixing Paddles

    Double Stainless Steel Mixing Paddle

    Mixing Speed

    25r/min and 16r/min

    Operation panel

    Siemens PLC Touch Screen

    Sealing

    Multi-layer seal

    Net Weight

    4000 KG

    MOQ

    ≥1 Set

    Warranty

    1 year

    300 vertical mixer

    Key Features & Benefits

    To get good quality dough the hard dough is usually mixed on a vertical dough mixer. Two or three paddle machines are used with high mixing speed, 25rpm. The high but gentle mixing action incorporates the ingredients well without undue work input at the sponge stage.

    The yeast should be dispersed in water before feeding to the mixing tub. The dough is mixed to a temperature of 30~35℃, which is the optimum temperature for the action of the yeast. The sponge is fermented for 12 hours at a temperature that depends on the biscuit master. During this time the pH value will change from about 5.5 to 4.0 and the temperature of the dough will increase.
    After the fermentation of the dough, the dough tub is taken back to the mixing room. The additional ingredients for the dough are added, including the sodium bicarbonate. Gentle, slow-speed mixing is required until homogeneous dough is made. Over-mixing will reduce the spring and give a hard, tough product. After mixing, the dough is returned to the fermentation room for up to 4 hours. With the addition of soda, a large change in the pH occurs and the dough will reach a pH of over 7.0.

    Product Advantages

    --Button touch control, with double speed to cater for different dough mixing requirement.


    --Especially suitable for making fermentation biscuit like soda cracker.


    --Button touch control, with double speed to cater for different dough mixing requirement.


    --Especially suitable for making fermentation biscuit like soda cracker.


    立式搅拌机新图1
    300kg/550kg two speed two paddle biscuit vertical dough mixer dough mixer 8

    PRODUCT VIDEO

    300/550 Vertical Mixer

    Running Video


    Product Details

    Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

    300kg/550kg two speed two paddle biscuit vertical dough mixer dough mixer 9
    ① Rising the dough tub to mix the dough.
    300kg/550kg two speed two paddle biscuit vertical dough mixer dough mixer 10
    ② Stainless steel dough tub
    300kg/550kg two speed two paddle biscuit vertical dough mixer dough mixer 11
    ③ Automatic pour the dough to next process.

    Product application

    Suitable for dough mixing in biscuit/cookie production lines

    cee0102c-d553-4625-a893-3e87883aa285
    Soft Biscuit
    CRAF2
    Cookie
    CRAF3 (2)
    Hard Biscuit
