650 Multi-speed Horizontal Dough Mixer

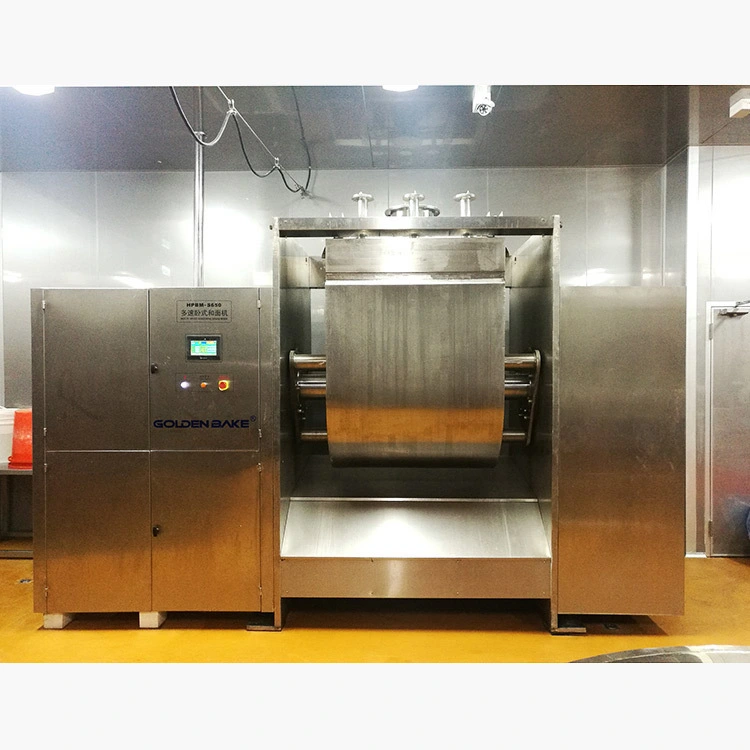

The horizontal dough mixer consists of two main parts, the control cabinet and the mixing part. The control cabinet is equipped with a PLC touch screen to control the frequency of motor speed with a soft start device for stepless speed change, to bring the dough fully mixing. It will improve the mixing quality.
5.0
Place of Origin:
China
Payment:
L/C, T/T
MOQ:
≥1
Model:
GBHN650
Brand:
Golden Bake
design customization

    oops...!

    no product data.

    Go to homepage
    650 Multi-speed Horizontal Dough Mixer 6
    Product Description
    With around 30 years of experience in the industry, Golden Bake is the first one in China in the sector to experiment and promote the baking process using Hybrid Gas Oven(mixed-heat ovens) in the early 1990s. Our oven can make a wide range of different types of biscuits of excellent quality, from soda crackers/cream crackers to the ultimate thin potato biscuits. For center filled biscuit. We are the first one to produce in Hybrid Gas Oven in China in model 1200 biscuit line. We could try on model1500 biscuit line if required, providing the best technology support.
    Read More

    Product Specifications

    Model

    GBHM650

    Motor reducer

    SEW

    Mixing speed

    120rpm with inverter control

    Width of wire mesh

    800-1200mm

    Brand

    GOLDEN BAKE

    Mixing barrel

    With jacketed cooling and circulating water temperature detection

    Operation panel

    Siemens PLC Touch Screen

    Seal design

    Multi-layer seal design

    Mixing barrel tilting angle

    ≥120°

    Mixing paddle

    304 stainless steel

    horizontal mixer with dosing system-2 (2)

    Product Description

    The horizontal dough mixer consists of two main parts: the control cabinet and the mixing part. The control cabinet is equipped with a PLC touch screen to control the motor speed frequency with a soft-start device for stepless speed change, to bring the dough fully mixing. This will improve the mixing quality. The mixing part includes the power part and stirring paddle. The dough tub of a horizontal mixer cannot be moved; it can only be tilted. Thus, the best place to install a horizontal mixer is on either side of a dough kibbler or a dough conveyor. Our horizontal mixer tilts at 120°to ensure the dough can pour directly into the dough kibbler.

    DOUGH MIXING

    Mixing is critical to developing the soft, extensible dough. A mixing action that kneads the dough without too much tearing and extruding is ideal. Mixing time on a low-speed mixer will be 20-25 minutes. Mixing time on high speed for the special starch dough will be 10-12 minutes. The dough should reach a higher temperature than hard dough. At this temperature, it should be well kneaded and of the correct consistency for machining. Mixing dough speed is slow; it can stir starch dough.

    650 mixing paddles-2
    650 Multi-speed Horizontal Dough Mixer 9

    PRODUCT ADVANTAGE

    650 Horizontal mixer

    --All functions can be controlled by a touchscreen.

    --Multi-speed mixing can fulfill optimal mixing requirements.

    --Jacket water circulation heating provides a suitable mixing temperature under different circumstances.

    --Inverter+PLC soft start reduces energy consumption and extends service life.

    PRODUCT DETAILS

    650 horizontal mixer-2
    650 horizontal mixer-1

    Product application

    cee0102c-d553-4625-a893-3e87883aa285
    Soft Biscuit
    CRAF3 (2)
    Hard Biscuit
    hard biscuit or cracker
    Cracker
