Product details of the dough rolling machine


Quick Detail

Golden Bake dough rolling machine is produced by purchasing advanced machines for production. Owing to the presence of our expert team members, we are engaged in supplying a wide range of dough rolling machine. The product has become the preferred product in the industry, seeing the great potential of the further application.


Product Information

Compared with other products in the same category, dough rolling machine has the following competitive advantages.

Dough Rolling Machine L/C by Golden Bake 6

Product Characteristics

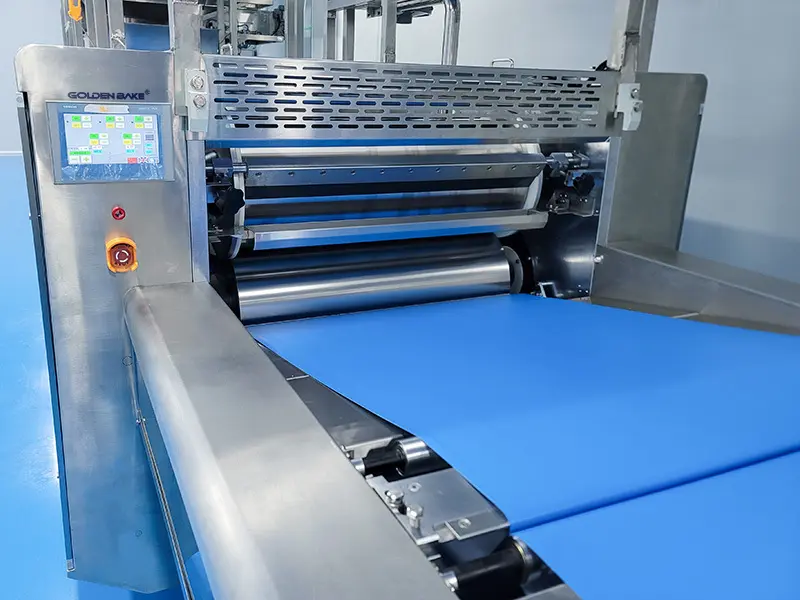

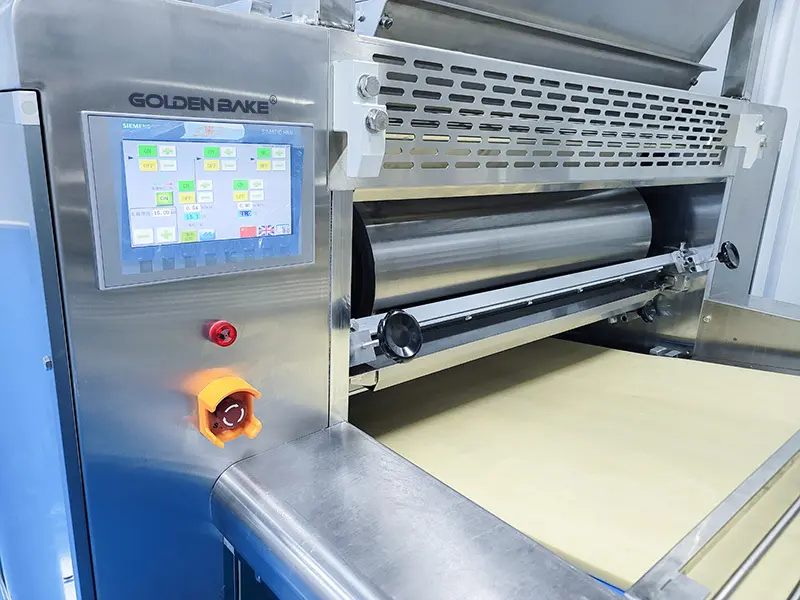

The gauge roller is placed in front of the forming machine and laminator. The Gauge Roller for press cookie dough allows you to effortlessly achieve consistent thickness in your cookie dough sheets, helping you create perfectly uniform and professional-looking cookies every time. Imagine effortlessly rolling out your dough onto a smooth surface, while the Gauge Roller ensures that it is pressed to an exact thickness with each stroke. With adjustable settings, you have full control over the desired thickness of your cookies, allowing for customization based on personal preference or specific recipe requirements. The ergonomic handle offers comfort and ease of use, preventing any strain on your hands during long baking sessions. This ingenious tool guarantees an even bake throughout all your cookies. The pre-made dough flan sent from laminator or three-color dough sheet rolling machine is rolled through rolling unit againto dough sheet with the thickness required for the flan. The rolling speed and conveying speed of each mono machine is controlled separately, so that it can be conveniently and easily operate. They are used in the forming process of hard sweet biscuits and crackers. As for its speciality,they are as followings.First of all,adopt customized chilled alloy roll of exclusively formula to make rollers of high hardness, making it longer working life. Secondly, roller are designed to be able to make super thin biscuit, by getting dough sheet thickness 0.7mm to 0.8mm evenly.Thirdly, Central Control System provides practical and user-friendly operation function, including upstream follow-up joint- control function which make machine trial running and daily operation easier for operators and as well as saving operators.Fourthly, Menu memory and call out function, easy for next time making same product.Fifthly, Machines can be either control flexibly via touch screen or by buttons.Sixthly, Roller’s gap distance adjustment adopt electricity motor-driven screw lifting, making it longer working life rather than eccentric wheel and easier operation for workers.Sevenly, Adjustment accuracy:0.01mm. Finally, Gauge roll machine’s drive motor is installed vertically suspended which provide most effective power output to save energy and easy for cleaning an maintenance.

Item

Name

Specification

1

Dimension

L1000mm*W2100mm*H1450mm

2

Weight

2000kg per set

3

Power

1# gauge roll:1.5kW+0.75kW+0.55kW 2# gauge roll:2.2kW+1.1kW+0.75kW 3# gauge roll:7.5kW+1.5kW+0.75kW

4

Wallboard thickness

δ30mm

5

Calendaring time

3

6

Calendaring width

1016mm

7

Roller' s Diameter

φ320mm

8

Calendaring thickness' s rang

0.6~20 mm

9

Roller' s distance adjustment

Electricity motor-driven screw lifting adjustment

10

Method of controlling

By Inverter

11

Conveyor belt

The use of PU belt.  pneumatic correction system.

12

Pneumatic brand

SMC

13

Roller material

Chilled alloy

14

Material of roller edger

PP

15

Material of scraper used for scraping roller

304 Stainless steel

16

Material of scraper used for belt

PP

17

Roller and conveyor motor brand

SEW

18

Roller and conveyor reducer brand

SEW

19

Bearing for rollers

Japan NSK

20

Method of operation

Upstream follow-up control function(touch screen+ PLC+ inverter, with memory, breakdown feedback)

21

Inverter brand

Japan Panasonic

22

PLC brand

Japan Panasonic

23

Electric control brand

Schneider

24

Out cover material

304 Stainless steel

25

Transition support board material

304 Stainless steel

26

Bridge board

304 Stainless steel

27

Support roller treatments

Plated environmental hard chromium

28

Wall board treatment

PU lacquer

29

Safety protection

Movement position are installed fixed safety barrier

Product Advantages

--Adopt customized chilled alloy roll of exclusively formula to make rollers of high hardness, making it longer working life. --Roller are designed to be able to make super thin biscuit, by getting dough sheet thickness 0.7mm to 0.8mm evenly.--Central Control System provides practical and user-friendly operation function, including

-pstream follow-up joint- control function which make machine trial running and daily operation easier for operators and as well as saving operators.--Menu memory and call out function, easy for next time making same product.--Machines can be either control flexibly via touch screen or by buttons.--Roller’s gap distance adjustment adopt electricity motor-driven screw lifting, making it longer working life rather than eccentric wheel and easier operation for workers.--Adjustment accuracy:0.01mm.--Gauge roll machine’s drive motor is installed vertically suspended which provide most effective power output to save energy and easy for cleaning an maintenance.

Dough Rolling Machine L/C by Golden Bake 7

How a gauge roller works in the context of producing biscuits:

1. Dough Preparation: The dough for biscuits is mixed and prepared according to the specific recipe, which typically includes flour, fats, sugar, and other ingredients.

2. Initial Thickness Adjustment: The dough is initially fed into a sheeting machine, which consists of a series of rollers. The first roller, often called the "pre-gauge roller," helps to flatten the dough and adjust its initial thickness.

3. Gauge Roller Function: After the initial thickness adjustment, the dough is then passed through a gauge roller. This roller has an adjustable gap or spacing between the two rolling surfaces. As the dough sheet passes through, the gauge roller applies pressure to the dough, repeatedly pressing and reducing its thickness.

4. Repeat Pressing Action: The primary function of the gauge roller is to achieve a consistent thickness across the entire dough sheet. To accomplish this, the dough may be passed through the gauge roller multiple times. Each pass reduces the thickness of the dough sheet incrementally, ensuring uniformity.

5. Final Thickness Adjustment: After the necessary number of passes through the gauge roller, the dough sheet reaches the desired thickness. The final thickness adjustment can be made by adjusting the gap between the gauge roller and the subsequent roller(s) in the sheeting machine.

By using a gauge roller in the dough forming process, the biscuit production line ensures that the dough sheet is consistently pressed to the desired thickness. This helps to ensure uniform baking, as well as consistent texture and appearance in the final biscuits. The ability to regulate the gap between the gauge roller's rolling surfaces allows for precise control over the thickness of the dough sheet.

Dough Rolling Machine L/C by Golden Bake 8

① First pressure the dough sheet three times.

Dough Rolling Machine L/C by Golden Bake 9

② Second relax the dough sheet and send it to the rotary cutter.

Application

Dough Rolling Machine L/C by Golden Bake 10
Hollow panda biscuit production line
Dough Rolling Machine L/C by Golden Bake 11
Wavy potato biscuit production line
Dough Rolling Machine L/C by Golden Bake 12
Potato crisp cracker production line
Dough Rolling Machine L/C by Golden Bake 13
Gold fish biscuit production line
Dough Rolling Machine L/C by Golden Bake 14
Ritz biscuit production line
Dough Rolling Machine L/C by Golden Bake 15
Soda cracker production line
Dough Rolling Machine L/C by Golden Bake 16
Finger biscuit production line

Biscuit production line used for automatic making biscuit.
