Product Characteristics

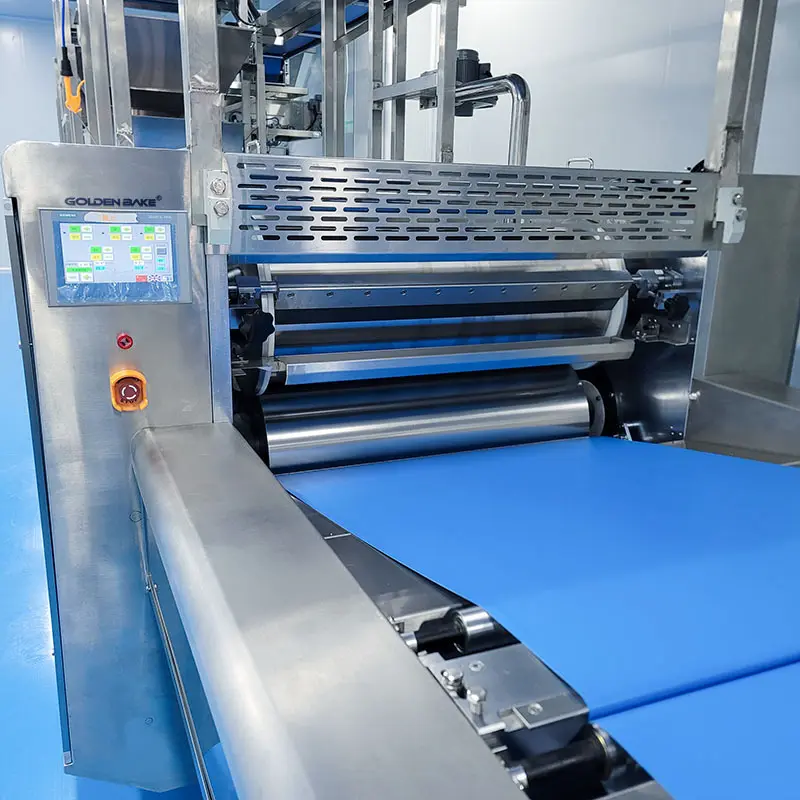

The three roller sheeter (Combination sheeter) is placed in front of the three color sheeter and behind the laminator.The combination sheeter is used to pre-roll the dough or dough sheets into suitable dough pieces which is then conveyed to the 1/2/3 gauge roller for further rolling. Our three roller sheeter is is designed in 3 sets of rolls in bigger roll diameter. The three roll sheeter is driven by inverter (Japan Panasonic) which control the drive. During the sheeting process, the rolls may evenly and smoothly transfer the dough sheet to the next process from the lower roll to the next conveyor. For our Material of scraper used for scraping roller , it is made of stainless steel which is high quality.The material of scraper used for belt is PP. It is also equipped with PLC Touch Screen in order that our worker can operate it easily and quickly. At the same time, the automation has been improved greatly. The diameter of the roller is about 400 mm,the roller guard is installed on the upper roller to reduce the possibility of cutting dough sheet. The minimum speed of the combination roller is 2 meter per minutes. There is white food grade nontoxic nylon gasket inside to prevent the dough from being polluted. As a result, we can get the dough sheet which is clean and in good quality.
-Can pre-made the dough brick without multi-layer-Avoiding the dough make bubble when go through baking oven
Product Parameters
Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.
Item | Name | Specification |
1. | Dimension | L1100mm*W2100mm*H1450mm |
2. | Weight | 3000kg per set |
3. | load request | 800kg/㎡ |
4. | Power | 1.1kW+0.75kW+0.37 kW |
5. | Wallboard thickness | δ25 |
6. | Gauge roll dimension | 350mm×2+200mm×1 |
7. | Guage roll quantity | 3 pcs |
8. | Calendaring thickness' s rang | 3～30 mm |
9. | Method of roller' s distance adjust | Electricial Adjustment |
10. | Method of controlling | Frequency speed control |
11. | Belt | PU belt （China famous brand） |
12. | Roller material | Chilled alloy |
13. | Material of roller edger | PP |
14. | Material of scraper used for scraping roller | Stainless steel (304) |
15. | Material of scraper used for belt | PP |
16. | Motor brand | SEW |
17. | Roller used for Calendaring and reducer used for belt | SEW |
18. | Method of operation | Converter (with main machine’s system) |
19. | Converter brand | Japan Panasonic |
20. | PLC Brand | Japan Panasonic |
21. | Electric control brand | Schneider |
22. | Out cover material | 304Stainless steel |
23. | Transition support board material | 304Stainless steel |
24. | Support rolls treatment | Plate environmental hard chromium |
Product Details
Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.
Pre-made the hard dough to the dough sheet and then convey it to the gauge rolls.
Application
Company Advantages
· This product is reliable, efficient, attractive, has flawless finishing and so many qualities.
· Our professional technicians have a clear understanding of the quality standards of the industry, and they test the products under their vigilance.
· Golden Bake has been focusing on providing the most convenient and professional one-stop service.
Company Features
· Golden Bake Group boasts its large capacity and high quality for grain bin temperature monitoring system.
· Golden Bake has a complete assortment of production facilities and advanced technology.
· We are committed to sustainable development. In addition to the good feeling we get, our sales actually increase through our good work. Get info!
Application of the Product
The grain bin temperature monitoring system developed by our company can play a role in various fields.
Golden Bake Biscuit Production Line can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.
