Product details of the industrial conveyor ovens
Product Description
The production level of Golden Bake industrial conveyor ovens is up to the international standards. With its excellent quality, this product greatly reduces the possibility of return and exchange. This product is very popular in the market and is widely used in the market.
Product Characteristics
The rotary cutter is placed in front of the baking and behind the gauge roller. It is used to cut dough into different shapes. The rotary cutter is an integral part of the rotary cutting group; it receives the dough sheet from the final gauge roll, after the relaxation conveyor, and it has the task of cutting the dough sheet into separate pieces according to desired size and shapes. It consists of two rollers, one for embossing and one for cutting.Our rotary cutter is equipped with Pneumatic lifting and hand wheel fine-tuning. The Central Control System provides practical and user-friendly operation functions, including upstream follow-up joint-control function which makes machine trial running and daily operation easier for operators and as well as saving operators. Its automatic electric synchronization is for calibrating two rolls’ speed while making pattern-printed biscuits and the menu memory and call-out function make it easy to make the same product next time. The Roller’s gap distance adjustment adopts electricity motor-driven screw lifting, making it longer working life rather than an eccentric wheel and easier operation for workers. The Drive motor is installed vertically suspended which provides the most effective power output to save energy and is easy to clean an maintenance. What’s more, machines can be either controlled flexibly via touch screen or by buttons. Last but not least, its high speed, and low noise can meet the requirements for maximum production capacity.
Product Parameters
Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.
Item | Name | Specification |
| 1 | Dimension | L1400mm*W2150mm*H1300mm |
| 2 | Weight | 1505kg |
| 3 | Power | 3kW+2.2kW+0.4 kW |
| 4 | Wallboard thickness | δ30mm |
| 5 | Type of Rotary Cutter | Double rollers type |
| 6 | Method of rollers' lifting | Pneumatic control with Hand-wheel adjust |
| 7 | Rollers' Synchronization adjustment method | Electricity synchronization |
| 8 | Rollers' diameter | φ230~φ245mm |
| 9 | Biscuit mould' s size | 980mm |
| 10 | Control method | Inverter control motor speed |
| 11 | Conveyor belt | Round canvas belt for cutter, pneumatic correction system. |
| 12 | Pneumatic component brand | SMC |
| 13 | PU belt scraper | 304 Stainless steel |
| 14 | Roller and conveyor motor brand | SEW |
| 15 | Roller and conveyor reducer brand | SEW |
| 16 | Method of operation | Upstream follow-up control function(touch screen+ PLC+ inverter, with memory, breakdown feedback) |
| 17 | Inverter brand | Japan Panasonic |
| 18 | PLC brand | Japan Panasonic |
| 19 | Touch screen brand | Wennview |
| 20 | Electric control brand | Schneider |
| 21 | Out cover material | 304 Stainless steel |
| 22 | Transition support board material | 304 Stainless steel |
| 23 | Bridge board brand | 304 Stainless steel |
| 24 | Support roller treatments | Plated environmental hard chromium |
| 25 | Wall board treatment | PU lacquer |
| 26 | Safety protection | Movement position are installed fixed safety barrier |
Product Advantages
--Pneumatic lifting and handwheel fine-tuning. --Automatic electric synchronization for calibrating two rolls’ speed while making pattern printed biscuit.--Central Control System provides practical and user-friendly operation function, including upstream follow-up joint- control function which make machine trial running and daily operation easier for operators and as well as saving operators.--Menu memory and call out function, easy for next time making same product.--Machines can be either control flexibly via touch screen or by buttons.--Roller’s gap distance adjustment adopt electricity motor-driven screw lifting, making it longer working life rather than eccentric wheel and easier operation for workers.--Drive motor is installed vertically suspended which provide most effective power output to save energy and easy for cleaning an maintenance.
Product Details
Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

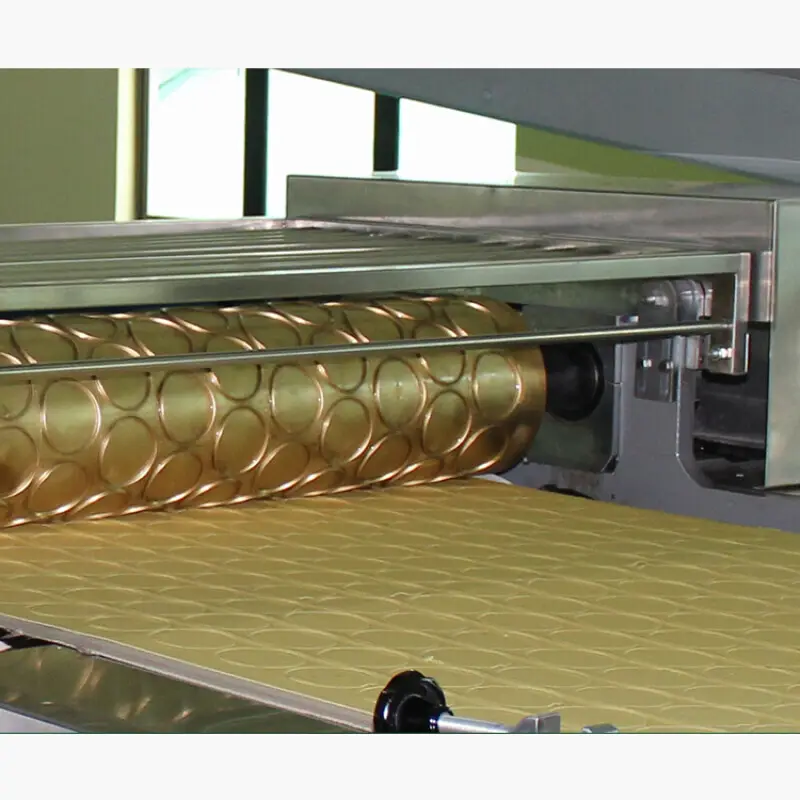

① Cutting the dough into special shape according to customers’ requirement .
Application
Company Advantage
• Golden Bake Biscuit Production Line's biscuit machine,cookie machine,biscuit production line are not only sold well in the domestic market, but also exported to Southeast Asia, Africa, Europe and America, and other countries and regions.
• Golden Bake Biscuit Production Line constantly takes talents in to enrich talent team. Now we have a professional and efficient production team, whose team members produce a large number of quality products depending on mature technology.
• Since built in Golden Bake Biscuit Production Line has been managing steadily step by step. Up to now, we have been developing for years and has accumulated rich industry experience.
Golden Bake Biscuit Production Line's biscuit machine,cookie machine,biscuit production line are of good quality and favorable price. Please contact us for order.
