Silo Food Storage System by Golden Bake

Inquiry

Product details of the silo food storage system


Product Overview

The exterior and internal structure of Golden Bake silo food storage system is completed by professional engineers. This product has an optimum quality and comprehensive performance. It is well-known that Golden Bake has good quality silo food storage system after-sales service.


Product Information

Compared with other similar products, our silo food storage system has the following advantages.

瓦楞薯片成型详情

Product Characteristics

The W-shape forming machine is one kind of gauge roll with a specially shaped roll. The roll of normal gauge rolls are smooth and only used to thin the dough. The W-shape forming machine is responsible for shaping the wavy shape on the dough sheet. Then go through the rotary cutter to cut the dough sheet.Wavy potato crisps chips also called w-shape potato biscuits a special shaped potato chips. Wavy potato crisp chips are made from whole starch, water, sugar, and other small ingredients. Instead of the flat design of traditional potato chips, the new wavy shape potato chips are more popular with young consumers. It's a bit more crunchy and chewy than common chips. Wavy potato crisp chips using non-fried production process can maximum guarantee potato chips original flavor and reduce the production of harmful substances. And people can eat a lot without getting fat. In terms of texture, our Wavy shape potato biscuit production line is different from the normal hard dough biscuit production line. We don’t use the laminator and shortening powder duster in our Wavy shape potato biscuit production line. Laminator may cause the wavy shape potato biscuit to bubble during baking. It will seriously affect the forming effect of the biscuit. In Wavy shape potato biscuit production line, we equipped the three rolls sheeter(combination sheeter) as the first rolling process after finishing the mixing process. Then connect the gauge roller, after the left and finally connect with a wavy shape forming machine. Our multiple gauge rolls technology can ensure that potato chips will not cause bubbles during the baking due to insufficient rolling.

Product Parameters

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

Item

Name

Specification

1

Load request

800kg/㎡

2

Wallboard thickness

δ30

3

Roller’s size

320×2

4

Roller quantity

2

5

Forming shape

W shape

6

Center of roller' s distance adjust

Mechanical limit

7

Calendaring thickness' s rang

1~10 mm

8

Method of roller’s distance adjust

Motor-driven adjustment

9

Control method

Frequency control of motor speed

10

Belt

Pneumatic deviation control

11

Roller material

Alloy chilled roller

12

Material of roller edger

Nylon

13

Material of scraper used for scraping roller

304 Stainless steel

14

Material of scraper used for belt

Nylon

15

Motor brand

SEW

16

Reducer brand

SEW

17

Method of operation

Electric

18

Converter brand

Japan Panasonic

19

PLC brand

Japan Panasonic

20

Electric control brand

French Schneider

21

Out cover material

Stainless steel

22

Transition support board material

Stainless steel

23

Support roller treatments

Plate environmental hard chromium

24

Wall board treatment

PU lacquer

Product Advantages

--Adopt customized chilled alloy roll of exclusively formula to make rollers of high hardness, making it longer working life. --Roller are designed to be able to make wavy shape onto the dough sheet--Central Control System provides practical and user-friendly operation function, including upstream follow-up joint- control function which make machine trial running and daily operation easier for operators and as well as saving operators.--Machines can be either control flexibly via touch screen or by buttons.--Roller’s gap distance adjustment adopt electricity motor-driven screw lifting, making it longer working life rather than eccentric wheel and easier operation for workers.--Adjustment accuracy:0.01mm.--Gauge roll machine’s drive motor is installed vertically suspended which provide most effective power output to save energy and easy for cleaning an maintenance.

Silo Food Storage System by Golden Bake 8

Product Details

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

Silo Food Storage System by Golden Bake 9
瓦楞薯片成型详情2

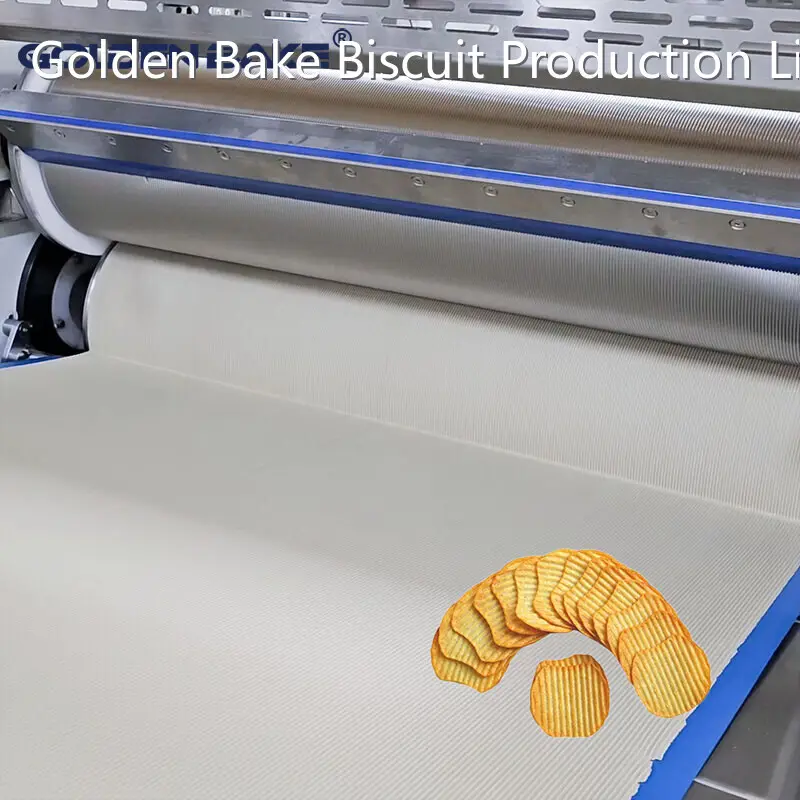

 W-shape forming roller to make wavy shape onto the dough sheet

Application

Silo Food Storage System by Golden Bake 11
Wavy potato biscuit production line

Biscuit production line used for automatic making biscuit.
