Dough Forming Machine Cookie Dough Sheeter To Make 3-color Biscuit

Product Characteristics

The three color biscuits is made of three colors of dough.Unlike sandwich biscuits, the different colors in the center are made from dough, not jam or cream.
The three color is placed in front of the gauge roller and behind the dough mixer. It is consist of three set biscuit dough forming machines. In the same way as the gauge rolls, it is responsible for pressing the dough into a specified thickness. But different from the gauge rolls, each machine in the automatic cookie dough roller has a separate feeding hopper. Each hopper can be fed with different colors dough according to the customer's requirements.Then go through the 3 colors cookie dough sheeter to make the three color biscuit embryo.When we don not make the three-color biscuit, the first machine is responsible for feeding material, which is directly delivered to the gauge rolls from the middle one.The three color sheeter can be used as gauge rolls.Our three-color can run separately or synchronously.It is made of 304 stainless steel.

Product Characteristics

--Adopt customized chilled alloy roll of exclusively formula to make rollers of high hardness, making it longer working life.
--Roller are designed to be able to make super thin biscuit, by getting dough sheet thickness 0.7mm to 0.8mm evenly.
--Central Control System provides practical and user-friendly operation function, including upstream follow-up joint- control function which make machine trial running and daily operation easier for operators and as well as saving operators.
--Menu memory and call out function, easy for next time making same product.
--Biscuit dough forming machines can be either control flexibly via touch screen or by buttons.
--Roller’s gap distance adjustment adopt electricity motor-driven screw lifting, making it longer working life rather than eccentric wheel and easier operation for workers.
--Adjustment accuracy:0.01mm.
--Gauge roll machine’s drive motor is installed vertically suspended which provide most effective power output to save energy and easy for cleaning an maintenance.
--Each machine in the three color sheeter has a separate feeding hopper to feed different color dough brick.

Product Parameters

Cookie dough sheeter typically consists of a conveyor belt or rollers that feed the dough through adjustable cylinders. the dough passes through the cylinders, it is compressed and flattened to the desired thickness.

The dough sheeter for cookie dough may have multiple sets of cylinders to achieve different thicknesses or to perform additional tasks such as cutting or shaping the dough.

Item	Name	Specification
1.	Dimension	L1100mmW2100mmH1450mm
2.	Weight	3000kg per set
3.	load request	800kg/㎡
4.	Power	1.1kW+0.75kW+0.37 kW
5.	Wallboard thickness	δ25
6.	Gauge roll dimension	350mm×2+200mm×1
7.	Guage roll quantity	3 pcs
8.	Calendaring thickness' s rang	3～30 mm
9.	Method of rolle' s distance adjust	Electricial Adjustment
10.	Method of controlling	Frequency speed control
11.	Belt	PU belt （China famous brand）
12.	Roller material	Chilled alloy
13.	Material of roller edger	PP
14.	Material of scraper used for scraping roller	Stainless steel (304)
15.	Material of scraper used for belt	PP
16.	Motor brand	SEW
17.	Roller used for Calendaring and reducer used for belt	SEW
18.	Method of operation	Converter (with main machine’s system)
19.	Converter brand	Japan Panasonic
20.	PLC Brand	Japan Panasonic
21.	Electric control brand	Schneider
22.	Out cover material	304Stainless steel
23.	Transition support board material	304Stainless steel
24.	Support rolls treatment	Plate environmental hard chromium

Product Details

Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.

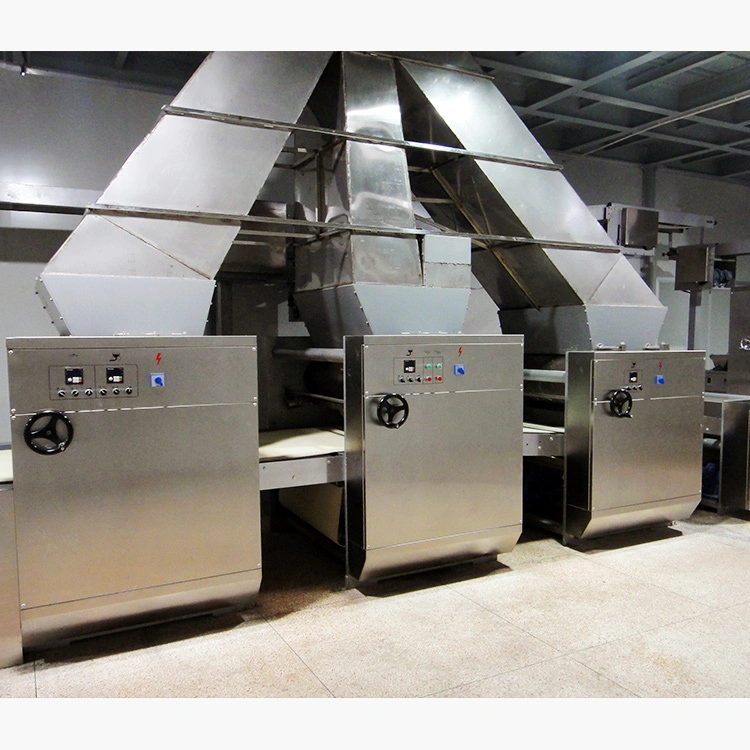

① Each machine in the three color sheeter has a separate feeding hopper to feed different color dough brick.

Application

It's worth noting that while cookie dough sheeters are primarily used for cookies, they can also be used for other types of dough, such pastry dough or pizza dough, depending on the specific design and capabilities of the machine.
