Product Specifications
Model |
GB800-1200 |
Heating type |
GAS(hybrid oven) |
Material |
304 Stainless steel |
Width of wire mesh |
800-1200mm |
Brand |
GOLDEN BAKE |
Motor |
SEW |
Operation panel |
Siemens PLC Touch Screen |
Length of baking oven |
61-69m |
Zone of baking oven(800mm) |
4 temperature zone 1st zone = 12M direct heated 2nd zone =12M direct heated 3rd zone = 15M direct heated 4th zone = 15M Indirect heated |
Zone of baking oven(1200mm) |
5 temperature zone 1st zone = 12M direct heated 2nd zone =12M direct heated 3rd zone = 15M Indirect heated 4th zone = 15M Indirect heated 5th zone = 15M Indirect heated |
Oven belt |
47R flattened square hole mesh belt |
Gas system |
Zero pressure gas supply system |
Burner |
Weishaupt |
Insulation Materials |
Rockwool |
Conveyor belt |
PU belt |
Sensor/approached switch |
AUTONICS |
Electrical protective standard |
IP54 |
Standard of wire and cable |
CCC certification |
Temperature meter |
TAIYE |
Blower on top oven |
Air cooling type |
Product Description
Ritz biscuits originated in Japan and have a history of more than 70 years. The raw materials used are wheat flour and milk. The high-quality dough is prepared by the vertical dough mixer. Then, through the laminating machine, stack a layer of hard dough biscuit. According to the customer's requirements, the layers can reach 4-12 layers. The rotary cutter cuts the biscuit with a smooth surface and a specific pattern on the surface. The mould of the rotary cutter of hard dough biscuits can be designed into different shapes according to customers' requirements. Or the client gives the conception that we design. After the biscuit is cut by a rotary cutter, the dough is cut into individual embryos. Raw biscuit embryo is inedible. To become an end product, the biscuit has to go through the baking process. After mixing and forming the hard dough biscuit embryo will be processed in the baking oven. The biscuits are shaped, dried, colored, and baked into a crisp, tasty Ritz biscuit.

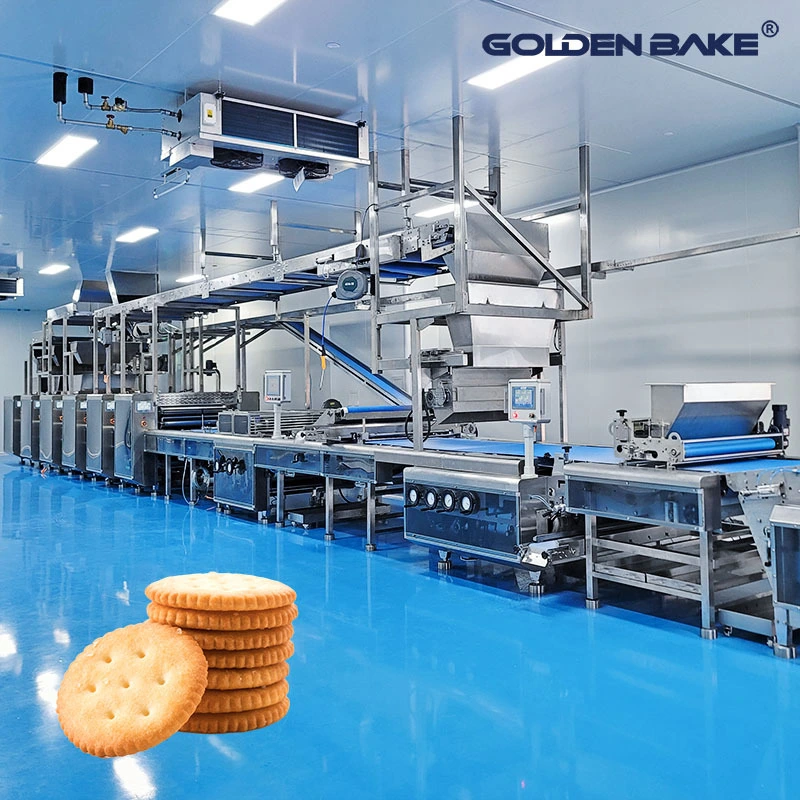

RITZ BISCUIT PRODUCTION LINE
Full set of Ritz biscuit automatic biscuit production line includes: Vertical dough mixer, Dough cutting machine with conveyor, Cut sheet laminator, Gauge rolls, Rotary cutter, Separate machine, Sugar/salt sprinkler, Entrance transfer machine, Hybrid gas baking oven, Peeling machine, Straight line type cooling conveyor, Rotary stacker and Horizontal packing machine.
-Hard dough biscuit with a unique layer texture
-Can make sandwich Ritz biscuits according to customers’ requirements.
PRODUCT ADVANTAGE
Hybrid gas tunnel oven
--Stable: oven chamber is designed to be separate & insulated from oven outer frame, making heat circulation inside chamber maintain even and no leakage, saving much more energy. And we now equip imported Weishaupt Burner, making it even better.
--Also for the hot-air convection oven zone, the hot-air pipeline is designed and arranged in a quite symmetry status, hot air blows from both sides of the pipeline, getting fair even heating circulation inside the chamber.
--Each ribbon burner's status and ignition can be shown on the touch screen, and can be controlled independently.
--Menu memory and fault feedback.
--Safety protection functions
Product Details
Providing customers with a whole automatic biscuit production line machinery which from material dosing to packing.
Product application
Suitable for Ritz biscuit production lines
